  • 40.07 Sine vise type EPS

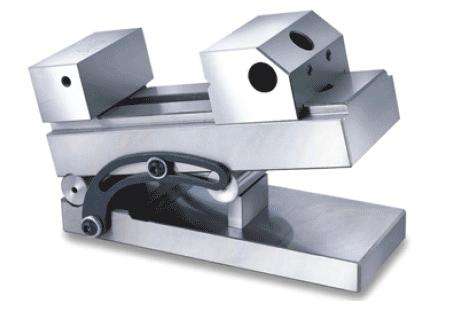

Sine vise type EPS

    • Sine
    • Heavy duty construction
    • Safe
    • Effective

. Made of hardened tool steel
. Hardenned and precision ground
. Hardness: HRC60
. Angle of tilt up to 45 degres
. Supplied with sine conversion table
  • Use :
    • Grinding
    • EDM
    • Milling
    • metrology
  • Squareness :
    • 0.005/100 mm
  • Parallelism :
    • 0.005/100 mm
40-07-800px-5087

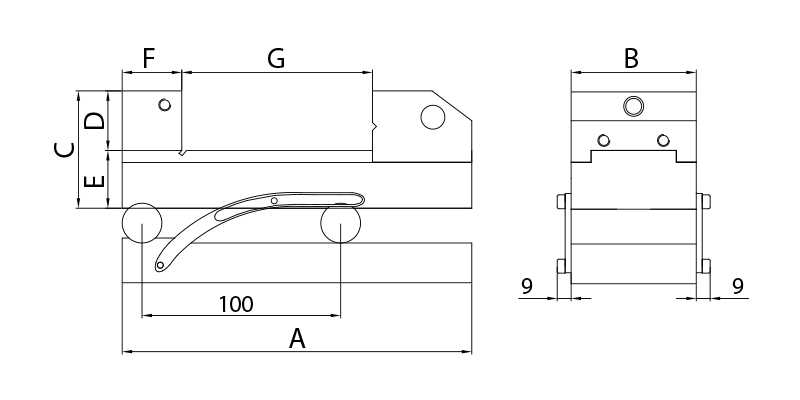

Qty Product Weight in kg A B C D E F G
40.07.482,91504888,52528250-75
40.07.634,61766394,53029300-85
40.07.736,419073103,53533350-95
40.07.9814,124598126,54545450-125
