Electro-permanent Circular Holder type VEP-SQ
print
REF 20.28
  • 20-28 ELEKTROPERMANENT HAFTMAGNET SQ für Automatisation
  • 20-28- ELEKTROPERMANENT HAFTMAGNET SQ
20-28 ELEKTROPERMANENT HAFTMAGNET SQ für Automatisation20-28- ELEKTROPERMANENT HAFTMAGNET SQ

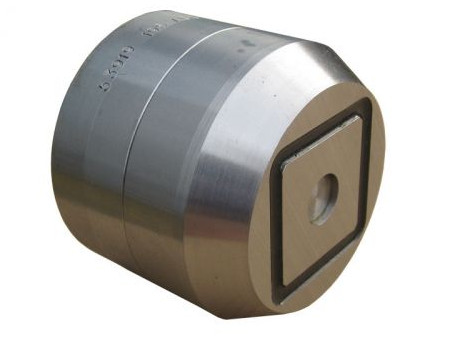

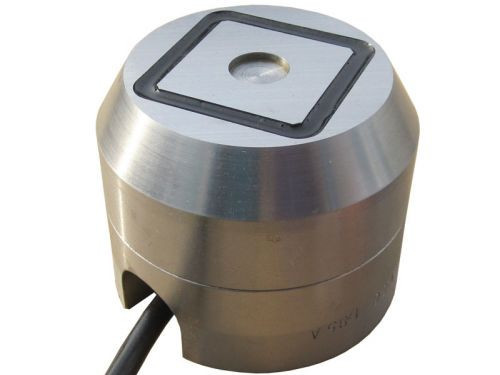

Electro-permanent Circular Holder type VEP-SQ

    • High holding power
    • Heavy duty construction
    • Long service life
    • Innovative

. Ideal for robots, automation
. Safety factor: 3:1
. Equipped with mounting threaded holes
. Energized by BUR control unit
  • Use :
    • Lifting
    • Handling
    • Accouplement
  • Nominal force :
    • 5400 N
  • Voltage :
    • 195 VDC
Options :
- Special pole shoes
20-28-36474

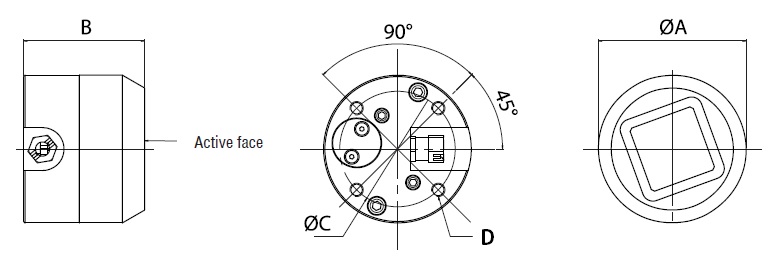

Qty Product Weight in kg A B C D
20.28.EP.110.90.1955,911090864xM10
20.28.EP.100.64.1953,110064-2xM8
