Electromagnetic bar type REM
print
REF 20.21
  • 20-21-rem-2091
  • rem-electroaimant-2090
  • img-20190314-wa0001-36144
20-21-rem-2091rem-electroaimant-2090img-20190314-wa0001-36144

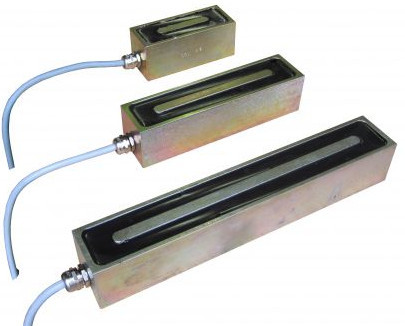

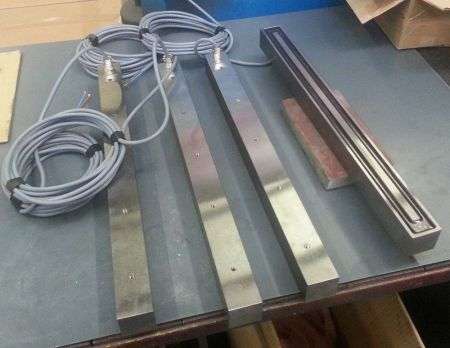

Electromagnetic bar type REM

    • Safe
    • Effective
    • Heavy duty & compact construction

. For lifting and manipulation of elements within automated systems
. Designed for continuous operation
. Cable connection through terminal or through cable screw connector
. Holding forces indicated in the table are vallid for parts made of ST37 steel with a suitable thickness, covering the entire active surface with no airgap. If real conditions/properties are different it is necessary to apply the corresponding safety margin.
. Active face admissible wear depth: 4 mm


  • Use :
    • Lifting
    • Handling
  • Admissible wear of top plate :
    • 4 mm
  • Voltage :
    • 24 VDC
  • Duty cycle :
    • 100 %
Options :
- Other dimensions on request
- Other voltages on request
- Reinforced version
20-21-800px-5074

G = Force
H = Power
Qty Product Weight in kg A B C D E F G H
20.21.1000,910040402xM6304070daN10W
20.21.1501,315040402xM8407090daN15W
20.21.1601,416040402xM630100150daN15W
20.21.2502,225040403xM63095320daN22W
20.21.3002,530040402xM850200270daN30W
20.21.3502,935040403xM840135310daN33W
20.21.4003,340040403xM840160360daN37W
20.21.5004,250040404xM840210450daN45W
20.21.6005,060040405xM841173540daN55W
20.21.7005,870040405xM840155630daN64W
20.21.8006,780040406xM840180720daN72W
20.21.9007,590040406xM840164810daN82W
20.21.10008,3100040407xM840184900daN92W
20.21.11009,2110040327xM840170980daN101W
