Circular Permanent Magnetic Chuck type MPF2
print
REF 11.05
  • 11-05-37065
  • Permanent Magnetrundfutter mit Feinpolteiung
  • 11.05.MPF2 circular magnetic chuck neodymium magnets
11-05-37065Permanent Magnetrundfutter mit Feinpolteiung11.05.MPF2 circular magnetic chuck neodymium magnets

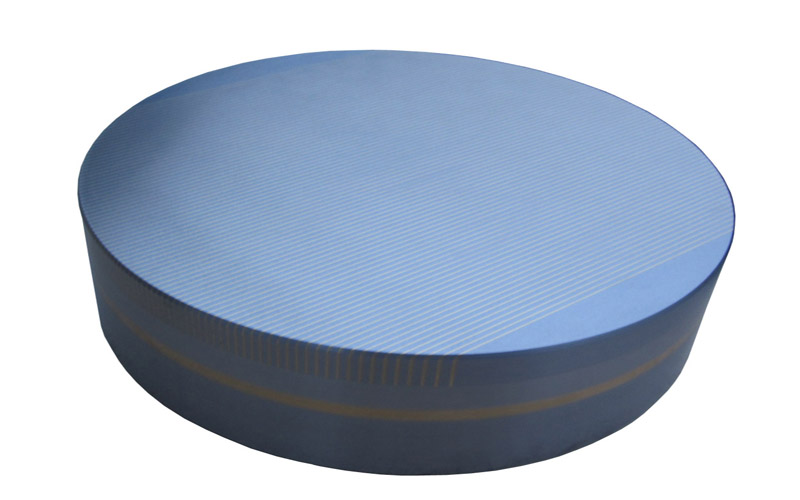

Circular Permanent Magnetic Chuck type MPF2

    • Heavy duty construction
    • Waterproof construction
    • Low magnetic field

. Circular magnetic chuck with NEODYMIUM magnets
. Low magnetic field
. Fine pole pitch
. Suitable for precision machings and thin workpieces
Included with purchase:
- 1 Actuating Key

  • Use :
    • Grinding
    • EDM
    • metrology
    • Laser welding
  • Nominal force :
    • 95 N/cm²
  • Pole pitch :
    • 2 mm
    • 0.5 mm of brass
    • 1.5 mm of steel
  • Admissible wear of top plate :
    • 5 mm
  • Magnetic field height :
    • 4 mm
Options :
Machining possible at the rear of the chuck
Fitting adaptors to:
. Morse cone 3 or 4
. Short taper flanges for:
A2 DIN 55026
Bayonet DIN 55027
Camlock DIN 55029

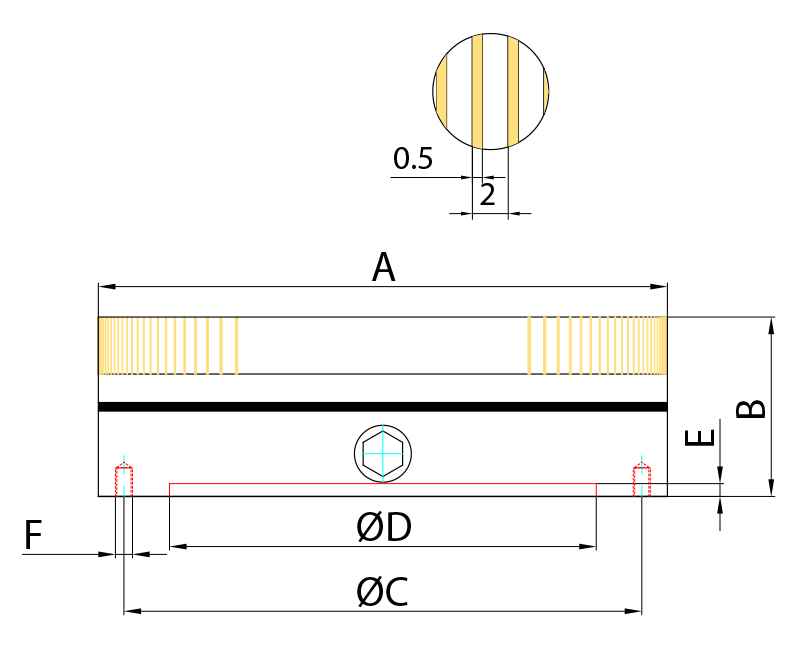

11-05-800px-5024

Qty Product Weight in kg A B C D E F
11.05.100G310052856044xM6
11.05.130G5130521159044xM8
11.05.150G71505213211044xM8
11.05.200G122005218016054xM8
11.05.250G192505223020054xM10
11.05.300G283005228023054xM10
