Circular Permanent Magnetic Chuck Type ERCA

    • High holding power
    • Recommended for hard turning

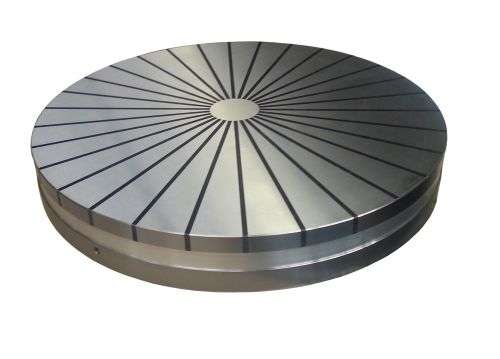

. Radial pole pitch with steel + epoxy resin
. AlNiCo magnets allow for applications at high temperatures
. Adjustable holding force for positioning of workpieces
Included with purchase:
- 1 Actuating Key

  • Use :
    • Grinding
    • Turning
    • Hard turning
  • Nominal force :
    • 110 N/cm²
  • Admissible wear of top plate :
    • 5 mm
Options :

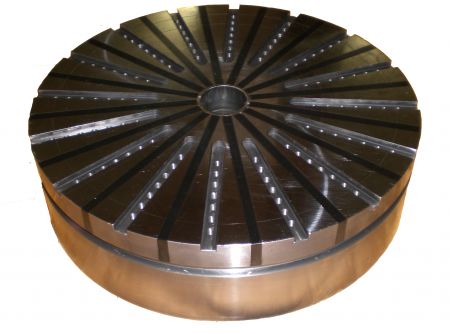

T-slots in each pole
Through hole in the middle
Raising pole shoes
Auxiliary top plate

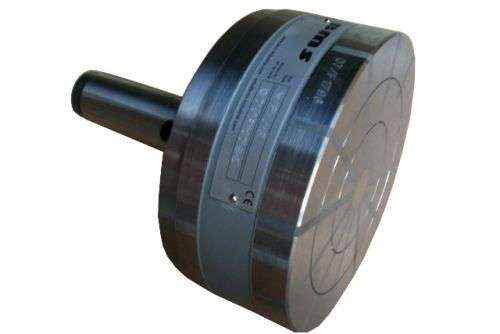

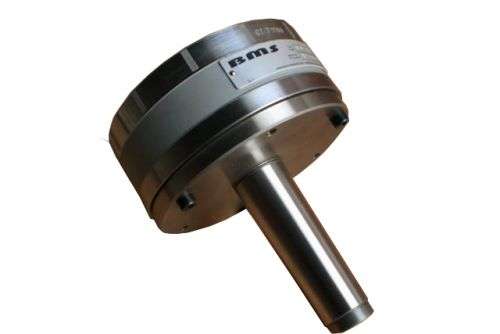

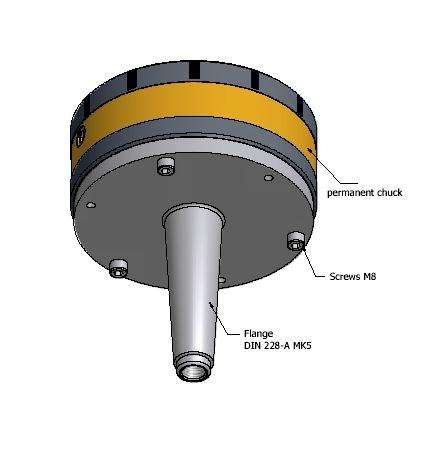

Fitting adaptors to:
. Morse cone 3 or 4
. Short taper flanges for:
  A2 DIN 55026
  Bayonet DIN 55027
  Camlock DIN 55029

11-01-800px-5021

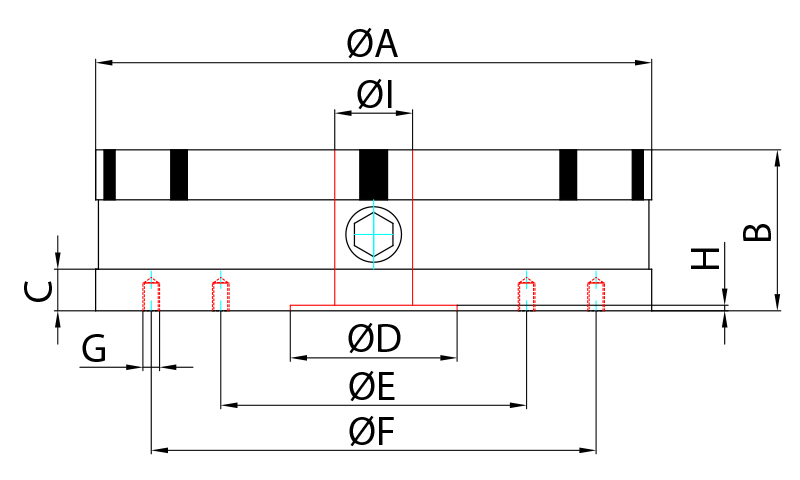

J = Nb of poles
Qty Product Weight in kg A B C D E F G H I J
11.01.1508,0150541750801204xM652410
11.01.20015,02005817601101804xM653014
11.01.25025,02505817801402204xM655014
11.01.30037,030058221501802604xM865818
11.01.35053,035071221702203004xM865818
11.01.40069,040071222002603404xM885818
11.01.500108,050071222003504504xM887524
11.01.600172,060080222503504504xM889030
11.01.800336,080095472504007004xM10812040
