VACUUM CHUCKS TYPE VRS-R
print
REF 30.01.5
  • VACUUM CHUCKS TYPE VRS-R
  • VACUUM CHUCKS TYPE VRS-R
  • VACUUM CHUCKS TYPE VRS-R
VACUUM CHUCKS TYPE VRS-RVACUUM CHUCKS TYPE VRS-RVACUUM CHUCKS TYPE VRS-R

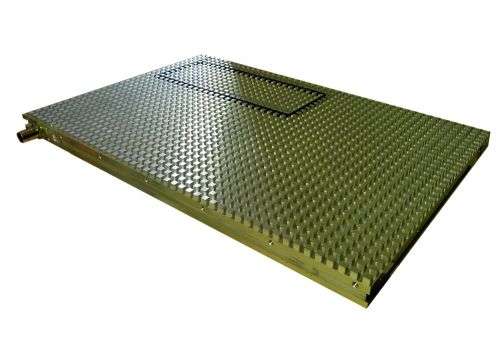

VACUUM CHUCKS TYPE VRS-R

    • In high density aluminium
    • High holding power
    • Heavy duty construction
    • Safe

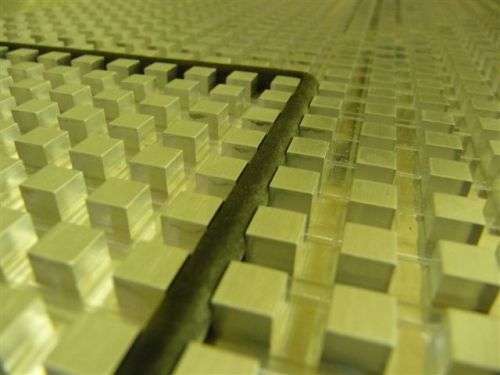

Vacuum table grid for milling
. Clamping slot
. 10 meters of seal
2 ranges of plates available for clamping non-magnetic parts:
VRS-R12AL: grid 12.5 mm Aluminum
VRS-R25AL: grid 25 mm Aluminium
  • Use :
    • Grinding
    • Milling
    • metrology
    • Machining
    • Planning
    • Engraving
  • Parallelism :
    • 0.02/100 mm
  • Flatness :
    • 0.02/100 mm
VACUUM CHUCKS TYPE VRS-R

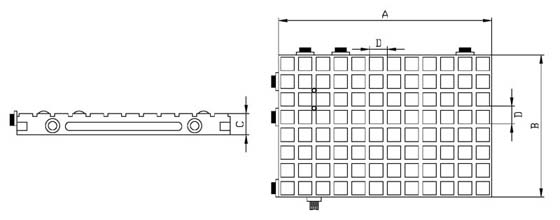

Qty Product Weight in kg A B C D
30.01.5.300200530020032.512.5/25
30.01.5.4003001240030032.512.5/25
30.01.5.6004002860040032.512.5/25
30.01.5.800400378004004812.5/25
30.01.5.10005004810005004812.5/25
