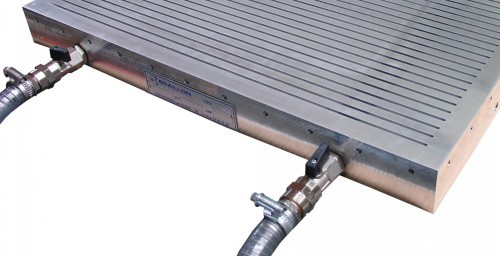

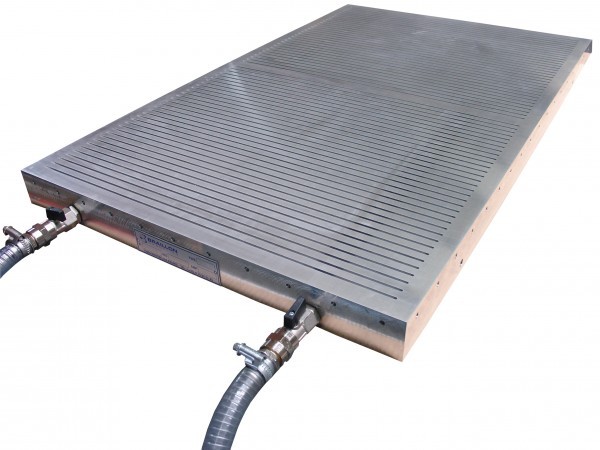

Vaccum Chuck with Parallel Slots type VMR

. Vacuum chuck with parallel slots
. Low construction
. With height adjustable end stops
. Use with special rubber mats (consumption item)
. The required complementary equipment to be ordered, see articles: 30.11 / 30.12 /30.14 / 30.18 / 30.15
. Corresponding vacuum pump: 30.10 / 30/20
Included with purchase:
- Air hose connector
- End stops

  • Use :
    • Milling
    • Drilling
    • Engraving
Options :
- Another position for air connection
- Multiple independent zones
- Special execution, palletizing
- With steel base plate for use on magnetic chucks

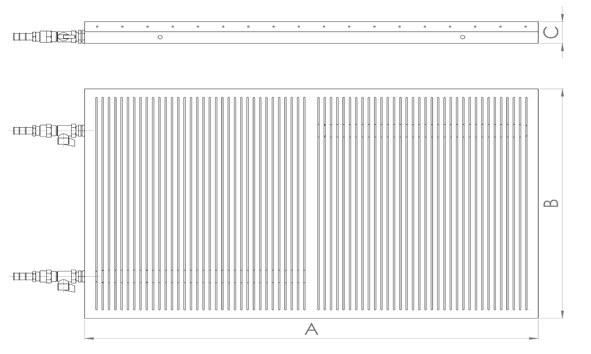

internet-30-2046

Qty Product Weight in kg A B C
30.09.40040021,540040052
30.09.5005003450050052
30.09.60040032,560040052
30.09.80040043,580040052
30.09.100050068100050052
