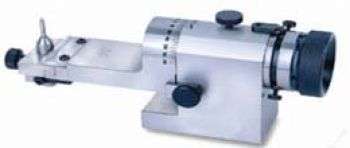

Universal wheel dresser type ADM65

    • Low height
    • Effective

  • Fast and precise production of concave and convex angles and radii
  • Hardened steel tool HRC 60
  • Maximum wheel diameter 205 mm
  • Max. transverse stroke 22,5 mm
  • Convex radii 0.2 to 10 mm
  • Concave radii 0.2 to 25.4 mm
  • Facing angle 95°-0°-95° .
  • Tip height 65 mm

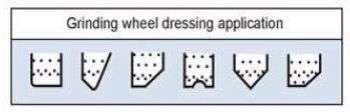

  • Use :
    • Grinding

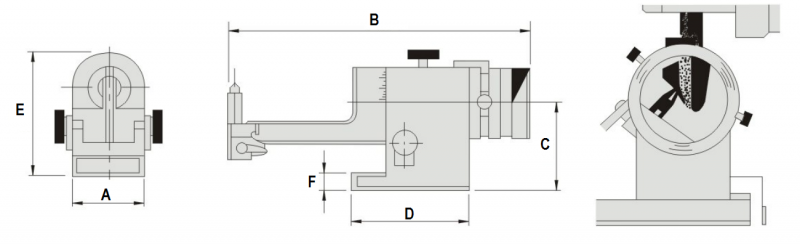

40-15-dimensions-35518

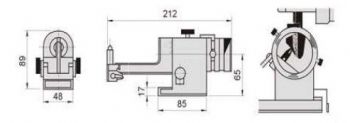

Qty Product Weight in kg A B C D E F
40.10.653,84821265858917
indication_tableau_dessus
