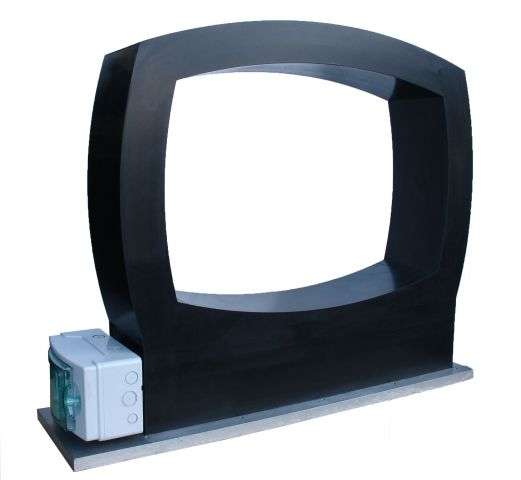

Tunnel Demagnetizer type T
print
REF 16.04T
  • 1604t5-2095

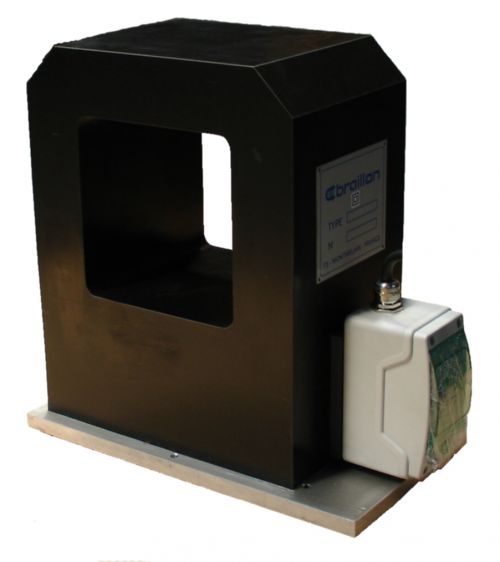

  • dem-t1-modifie-2092-5164

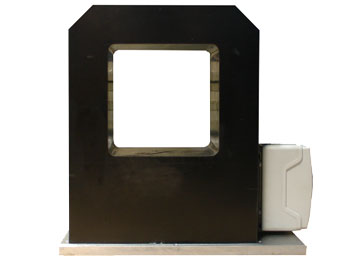

  • 16-04t1-2093

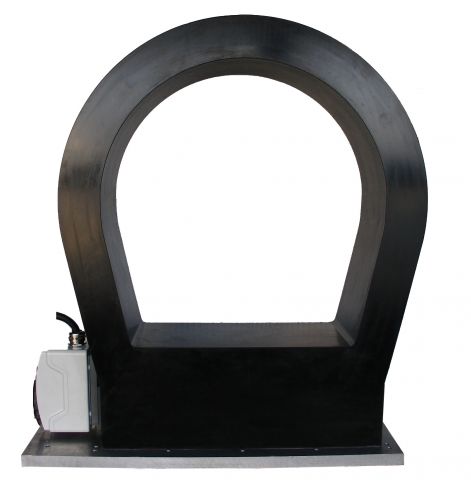

  • 1604t4-2097

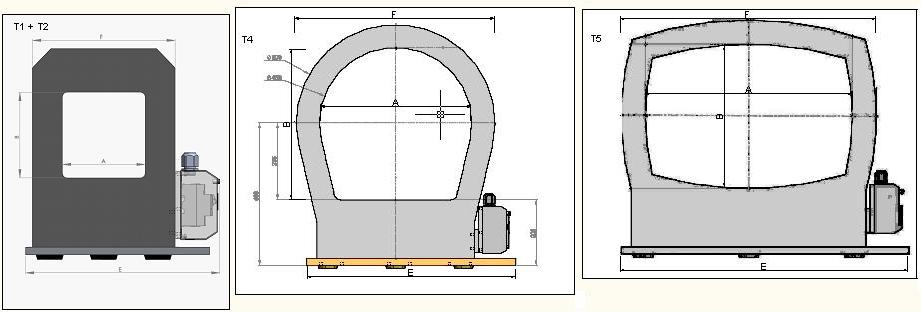

  • skizze-t1-t2-t4-t5-5163

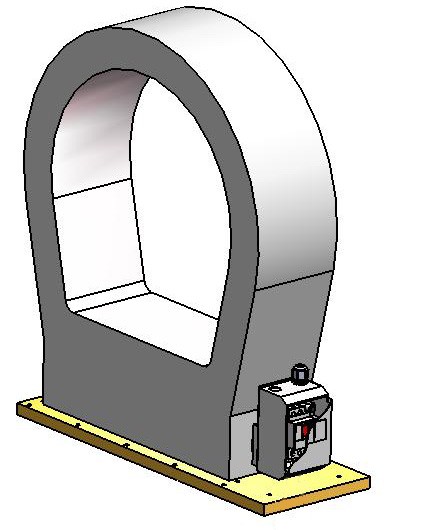

  • 16-04-t4-3d-ansicht-c0401068-t4-35550
1604t5-2095dem-t1-modifie-2092-516416-04t1-20931604t4-2097skizze-t1-t2-t4-t5-516316-04-t4-3d-ansicht-c0401068-t4-35550

Tunnel Demagnetizer type T

    • Heavy duty construction
    • Waterproof construction

. Designed for continuous operation cycle
. Coil encapsulated in a high performance epoxy resin
. Extremely stable construction
. During the demagnetization cycle the workpiece should be moved at low and constant speed through the alternative field of demagnetizer (recommended speed: 0.05 to 0.2 m/sec.)
Included with purchase:
- ON/OFF switch, fuses and control leds
  • Use :
    • Demagnetization
  • Voltage :
    • 230 / 400 VAC
  • Duty cycle :
    • 100% %
Options :
- Other sizes on request
- Low frequency generator for demagnetization of difficult workpieces
- Automatic demagnetization systems with conveyor belt or rollers

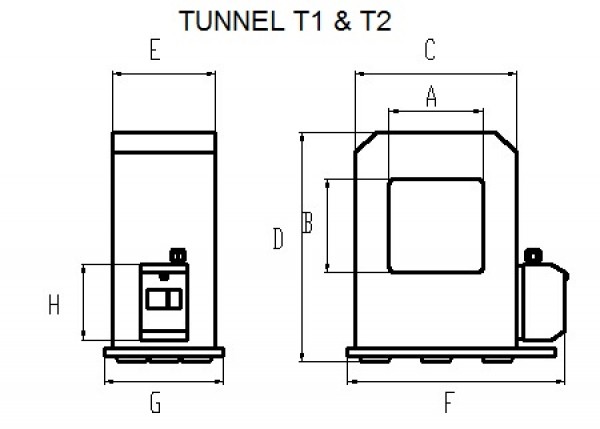

16-04t1-35954

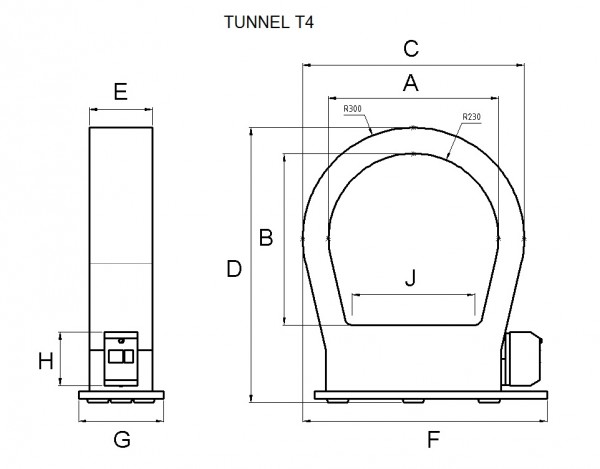

16-04t4-35953

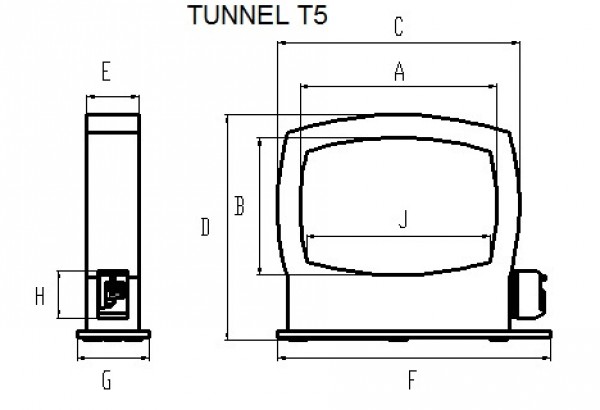

16-04t5-35955

Qty Product Weight in kg A B C D E F G H I
16.04.T1.40055180180310432200434230150-
16.04.T2.40070255255380488200470230150-
16.04.T4.40095460465600731170631230150332
16.04.T5.400115600420740676160835220150560
16.04.T1.23055180180310432200434230150
16.04.T2.23070255255380488200470230150-
indication_tableau_dessus
