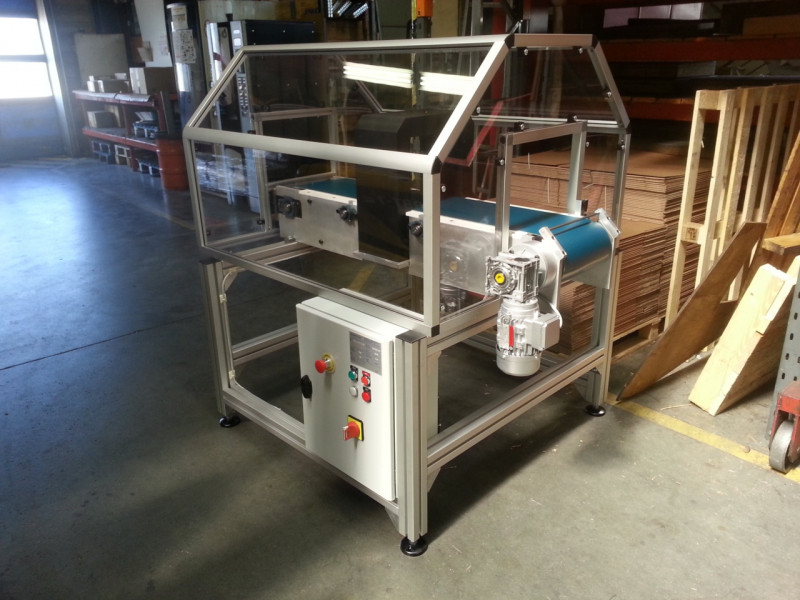

Tunnel demagnetizer fully integrated in the conveyor belt

  • High performance resin encapsulated coil (black)
  • Reinforced system
  • Aluminium frame
  • Conveyor with fairing, with tunnel integration
  • On/off switch with pilot light
  • Thermal circuit breaker
  • Electrical box
A part to be demagnetised must be exposed to an alternating magnetic field which reduces H. In order to demagnetise these parts, either to comply with a specification (automotive standards, etc.) or to carry out machining (on a wire machine, for example), the part is passed through the tunnel at a slow and constant speed (approximately 0.2 m/sec). It is essential to take the workpiece out of the demagnetiser by 40 to 60 cm before switching it off. Demagnetisation test possible. Ask your technical advisor.
  • Use :
    • Demagnetization
  • Voltage :
    • 220/400/480 VAC
  • Duty cycle :
    • 100 %
Options :
  • Other transport belt with grip
  • Starter box with workpiece position sensor
  • Automatic machine for multiple demagnetizing passes
  • Frequency converter for demagnetising parts that are difficult to demagnetise
Can be supplied with robot cell interface: on request, to be defined with the application
Entmagnetisiertunnel voll integriert im Förderband

Qty Product Weight in kg A B C D E F G H I
16.05.B.T1.1300-13005252005759301180170160600
16.05.B.T1.1500-15005752007259301180170160600
16.05.B.T1.2000-2000900200900930118070160600
16.05.B.T2.1300-13005252005759301300250230640
16.05.B.T2.1500-15005752007259301300250230640
16.05.B.T2.2000-20007752007259301300250230640
16.05.B.T4.1400-14003151709159701400330345850
16.05.B.T4.2000-200077517010259701400330345850
16.05.B.T4.2500-250077517015559701400330345850
16.05.B.T5.1400-14003151609159701400500300850
16.05.B.T5.2000-200077516010259701400500300850
16.05.B.T5.2500250078016015609701400500300850
indication_tableau_dessus
