Single Sine Table with EDM Magnetic Chcuk type EDM/SS
print
REF 12.08
  • 12-08a-2023
  • 12-08b-i-36147
  • 12-08c-i-36149
12-08a-202312-08b-i-3614712-08c-i-36149

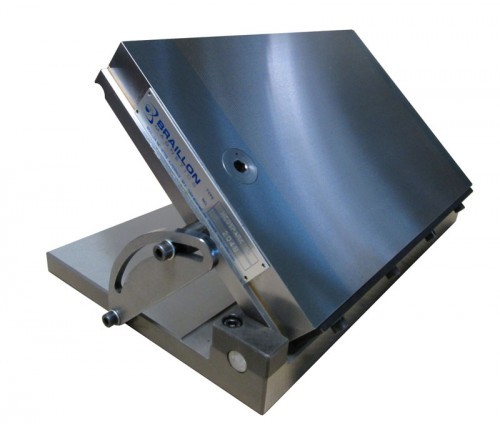

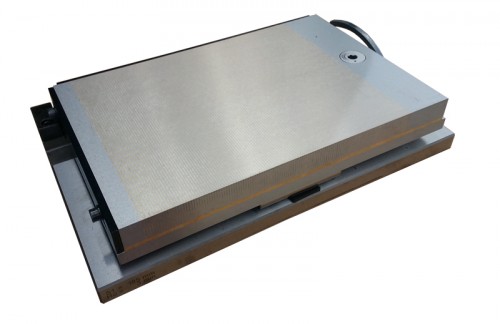

Single Sine Table with EDM Magnetic Chcuk type EDM/SS

    • Heavy duty construction
    • Waterproof construction
    • Low magnetic field

. With standard permanent magnetic chuck type EDM
. Steel base body hardened to 60 HRC
. Precision-ground surface for highest accuracy
. Swiveling on long axis: from 0 to 45°
Included with purchase:
- 1 Actuating key
- End stops
- Table of sines

  • Use :
    • EDM
  • Angular accuracy :
    • ± 5 sec
  • Parallelism :
    • ± 0.005/100 mm
  • Nominal force :
    • 100 N/cm²
  • Pole pitch :
    • 2 mm
  • Admissible wear of top plate :
    • 8 mm
  • Magnetic field height :
    • 4 mm
Options :
- With other magnetic chucks on request
- Swiveling on short axis
- Part of palletizing system: Erowa, 3R, Hirschmann, Vischer & Boli
12.11-Single sine table

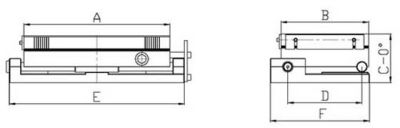

Qty Product Weight in kg A B C D E F
12.08.25015015,025015065135290165
12.08.30015020,030015065135340165
12.08.30020028,030020065185340215
12.08.30030045,030030070285340340
