REF 14.08
Set of Laminated Blocks type PRATIC
-
- Silver brazed top plate
-
- Silver brazed top plate
. Set of the most frequently used laminated blocks 14.08 & 14.08.EDM:
- Made of silver brazed steel and brass laminations
. Laminated blocks transmit the magnetic field of the chuck towards the workpiece. They can be used with any magnetic clamping system that has a parallel pole pitch. They can simply be placed loose on the magnetic chuck surface (respecting laminations direction) or can be mechanically fitted to the chuck.
. Able to withstand harsh applications because no glue or rods have been used to fix the laminations together.

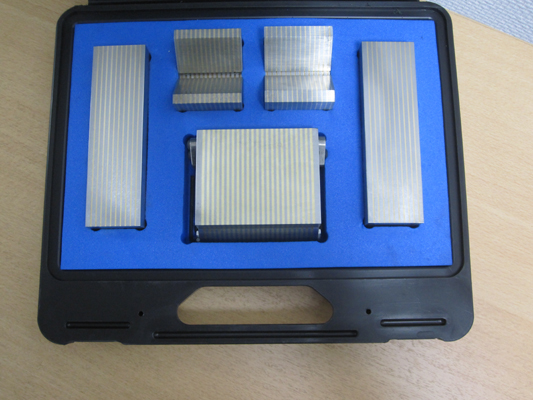

Included with purchase for 14.08:
- 2 laminated blocks with transversal pole pitch, size: 57x32x15 mm (Article no. 14.02.573215)
- 2 laminated blocks with transversal pole pitch, size: 97x57x26 mm (Article no. 14.02.975726)
- 2 laminated blocks with longitudinal pole pitch, size: 97x53x22 mm (Article no. 14.01.975322)
- 2 laminated blocks with Vee, size: 65x60x40 mm (Article no. 14.03.656040)

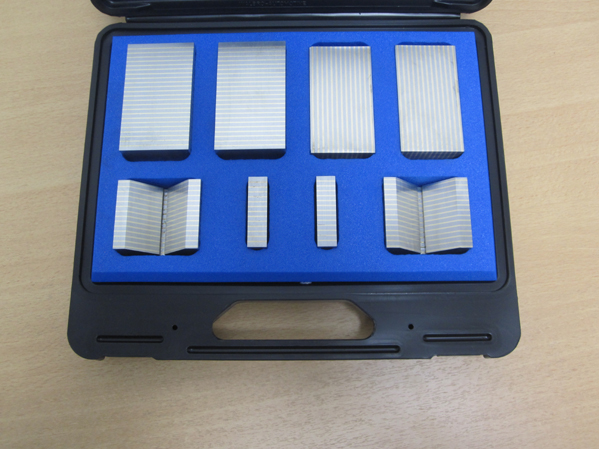

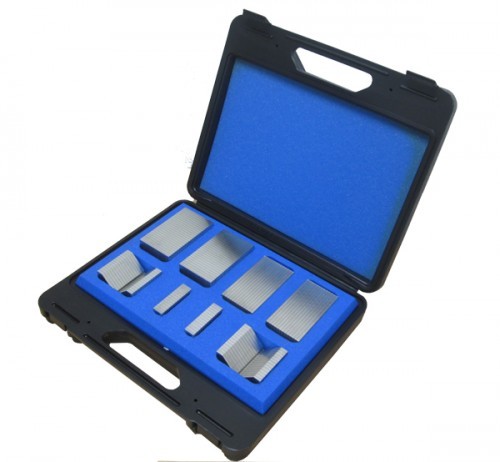

Included with purchase for 14.08.EDM:
- 2 laminated blocks with longitudinal pole pitch, size: 100x50x40 (Article no. 14.01.5010040)
- 2 laminated blocks with Vee, size: 65x60x40 mm (Article no. 14.03.656040)
- 1 laminated tilting block, inclination 0°-50°, size: 104x93 (Article no. 14.09.10493.incl)
- Made of silver brazed steel and brass laminations
. Laminated blocks transmit the magnetic field of the chuck towards the workpiece. They can be used with any magnetic clamping system that has a parallel pole pitch. They can simply be placed loose on the magnetic chuck surface (respecting laminations direction) or can be mechanically fitted to the chuck.
. Able to withstand harsh applications because no glue or rods have been used to fix the laminations together.
Included with purchase for 14.08:
- 2 laminated blocks with transversal pole pitch, size: 57x32x15 mm (Article no. 14.02.573215)
- 2 laminated blocks with transversal pole pitch, size: 97x57x26 mm (Article no. 14.02.975726)
- 2 laminated blocks with longitudinal pole pitch, size: 97x53x22 mm (Article no. 14.01.975322)
- 2 laminated blocks with Vee, size: 65x60x40 mm (Article no. 14.03.656040)
Included with purchase for 14.08.EDM:
- 2 laminated blocks with longitudinal pole pitch, size: 100x50x40 (Article no. 14.01.5010040)
- 2 laminated blocks with Vee, size: 65x60x40 mm (Article no. 14.03.656040)
- 1 laminated tilting block, inclination 0°-50°, size: 104x93 (Article no. 14.09.10493.incl)
-
Use :
- Grinding
- EDM
- metrology
