Remote control T20 type with microprocessor

    • Heavy duty construction
    • Innovative
    • Effective

T20 type remote control of the latest generation with microprocessor.
Allows the control of trays and electro-permanent systems with excellent ergonomics thanks to a clear signalling via its backlit screen.

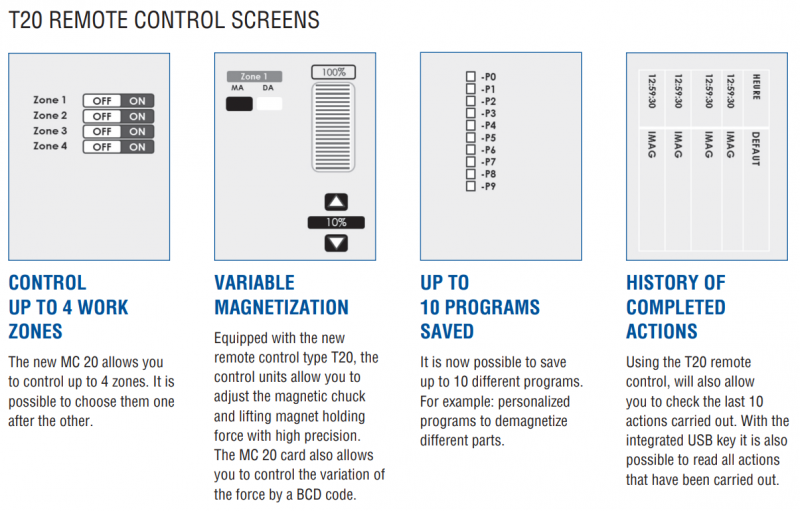

Control of up to 4 work zones.
Variable magnetisation, precise force adjustment from 0 to 100 %.
Magnetisation and demagnetisation with control release.
Integrated diagnostic function with current monitoring, history of the last 10 actions.

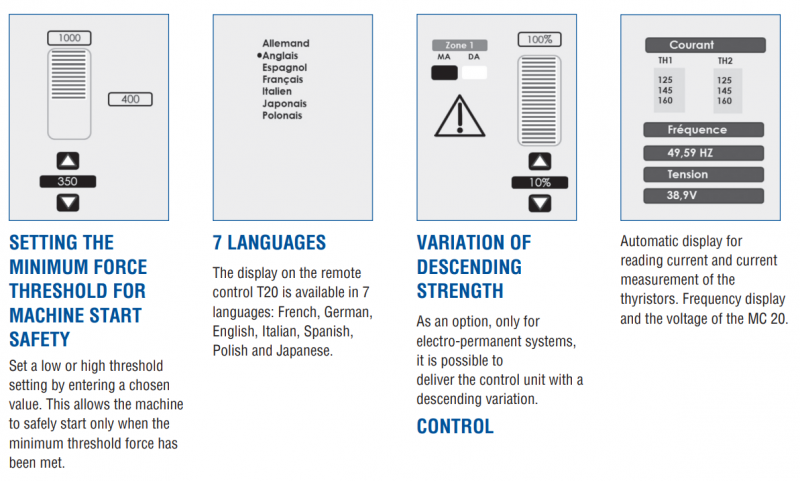

Setting of the minimum threshold for operation.
Up to 10 different programs can be saved (e.g. specific demagnetisation cycles)
Downward force variation for electropermanent systems.
Magnetic rear panel for fixing.
7 pre-programmed languages.
Dimensions: 155 x 88 x 34 mm thick.
Possible cable lengths: 5 m, 10 m and 15 m
  • Use :
    • Installation électrique
image-t20-1-anglais-36679
image-t20-2-anglais-36680

Qty Product
51.10.T20.5M
51.10.T20.10M
51.10.T20.15M
51.10.T20S.5M
51.10.T20S.10M
51.10.T20S.15M
