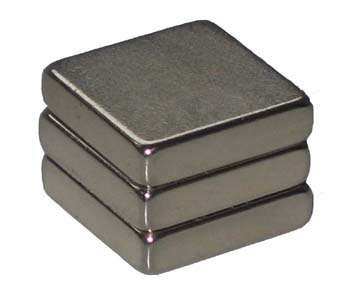

Rectangular Neodyme AN 02 permanent magnet
REF 81.02
Rectangular Neodyme AN 02 permanent magnet
-
- Neodynium magnet
-
- High holding power
-
- Neodynium magnet
-
- High holding power
The Neodymium (rare earth) magnet (also known as NdFeB, NIB or Neo magnet) they are sintered magnets composed of NdFeB powder. A Surface treatment is necessary for corrosion protection (Zinc-Nickel-Or-Epoxy). The Neodymium Fer Bore magnets have a very high magnetic strength and a high resistance to demagnetization. They are fragile ceramics and its strength is highest when the magnet is in contact with a mild steel, that is clean and thick enough. The strength is reduced when in contact with alloy steels (cast Iron -30%), due to air-gap or a high temperature (-0.11% per degree C). Neodymium magnets are not machinable, they can not be cut or drilled. and mounting is done with glue. Magnetized depending on thickness.
-
Use :
- Relay
- Sensor
- Lock
- Clamping
- Step by step motor
-
Max. temperature of use :
- 80 (150°) °C
-
Density :
- 7.5 gr/cm³
-
Max. surface induction :
- 5000 (N35) G
All dimensions are possible on simple request.

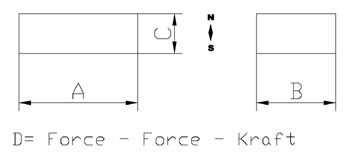

| Qty | Product | Weight in kg | A | B | C | D |
|---|---|---|---|---|---|---|
| 81.02-5x1.5x1 | 0.00006 | 5 | 1.5 | 1 | 1.4N | |
| 81.02-5x2.5x2 | 0.0002 | 5 | 2.5 | 2 | 4.5N | |
| 81.02-5x4x2 | 0.0003 | 5 | 4 | 2 | 5.5N | |
| 81.02-5x5x2 | 0.0004 | 5 | 5 | 2 | 6.5N | |
| 81.02-6x4x2 | 0.0004 | 6 | 4 | 2 | 8N | |
| 81.02-7x6x1.2 | 0.0004 | 7 | 6 | 1.2 | 6N | |
| 81.02-7.5x4x1.5 | 0.0004 | 7.5 | 4 | 1.5 | 5N | |
| 81.02-8x4x3 | 0.0008 | 8 | 4 | 3 | 9N | |
| 81.02-10x4x1 | 0.0003 | 10 | 4 | 1 | 5.8N | |
| 81.02-10x5x1 | 0.0005 | 10 | 5 | 1 | 6.5N | |
| 81.02-10x5x2 | 0.0008 | 10 | 5 | 2 | 13N | |
| 81.02-10x7x3 | 0.0016 | 10 | 7 | 3 | 18N | |
| 81.02-10x10x3 | 0.0023 | 10 | 10 | 3 | 20N | |
| 81.02-12x12x2 | 0.0022 | 12 | 12 | 2 | 18N | |
| 81.02-15x3x1.2 | 0.0004 | 15 | 3 | 1.2 | 10N | |
| 81.02-15x10.5x3 | 0.0034 | 15 | 10.5 | 3 | 25N | |
| 81.02-16x12.5x2.5 | 0.004 | 16 | 12.5 | 2.5 | 24N | |
| 81.02-18x16.5x4 | 0.009 | 18 | 16.5 | 4 | 50N | |
| 81.02-20x10x5 | 0.008 | 20 | 10 | 5 | 50N | |
| 81.02-20x20x5 | 0.016 | 20 | 20 | 5 | 35N | |
| 81.02-25x10x2 | 0.0038 | 25 | 10 | 2 | 17N | |
| 81.02-26x20.3x5 | 0.002 | 26 | 20.3 | 5 | 77N | |
| 81.02-30x9x2 | 0.004 | 30 | 9 | 2 | 18N | |
| 81.02-33x26x6.5 | 0.040 | 33 | 26 | 6.5 | 125N | |
| 81.02-35x14x7 | 0.026 | 35 | 14 | 7 | 110N | |
| 81.02-40x20x5 | 0.030 | 40 | 20 | 5 | 120N | |
| 81.02-40x20x10 | 0.057 | 40 | 20 | 10 | 210N | |
| 81.02-50x16x5 | 0.030 | 50 | 16 | 5 | 132N | |
| 81.02-50x50x8 | 0.140 | 50 | 50 | 8 | 360N | |
| 81.02-100x100x20 | 1.5 | 100 | 100 | 20 | / |
