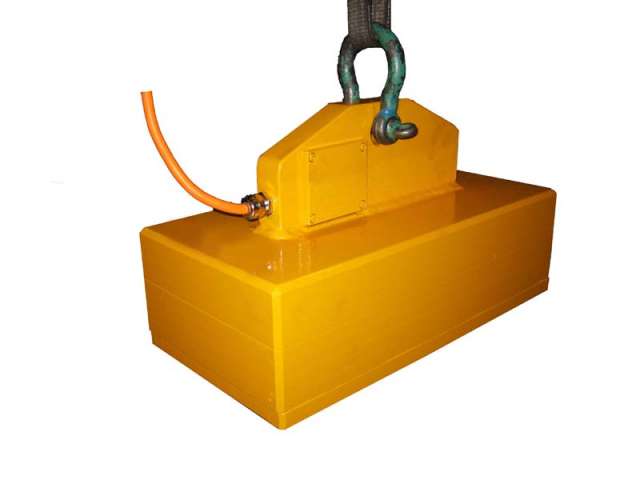

Rectangular electromagnetic lifting unit type EMR

    • For flat plate
    • High holding power
    • Heavy duty construction
    • Waterproof construction
    • Safe
    • Effective
    • According to EN13155 standard

. Steel housing
. Tapped mounting holes
. Cable length 5 meters
In order to obtain the nominal holding force indicated above, the work piece must cover the entire operating face.
  • Use :
    • Lifting
    • Handling
  • Voltage :
    • 110 VDC
    • 230 VAC
  • Duty cycle :
    • 100 %
Options :
Other dimension and special design
Other voltage

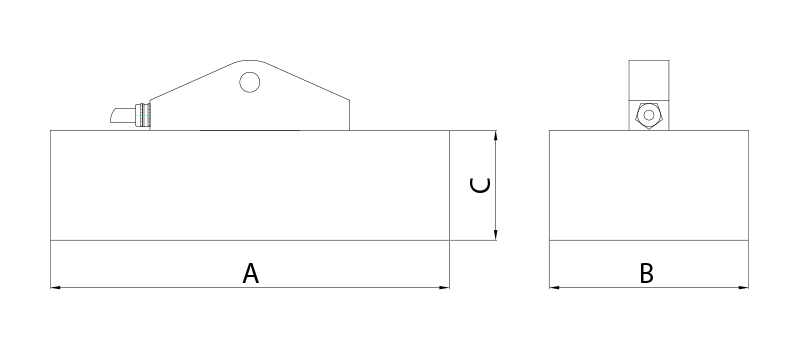

20-05-800px-5066

D = Force
E = Power
Qty Product Weight in kg A B C D E
20.05.250100.110VDC29250100120900daN200W
20.05.250100.230VAC29250100120900daN200W
20.05.400200.110VDC604002001171500daN280W
20.05.400200.230AC604002001171500daN280W
20.05.600300.110VDC135,06003001382500daN560W
20.05.600300.230AC135,06003001102500daN560W
