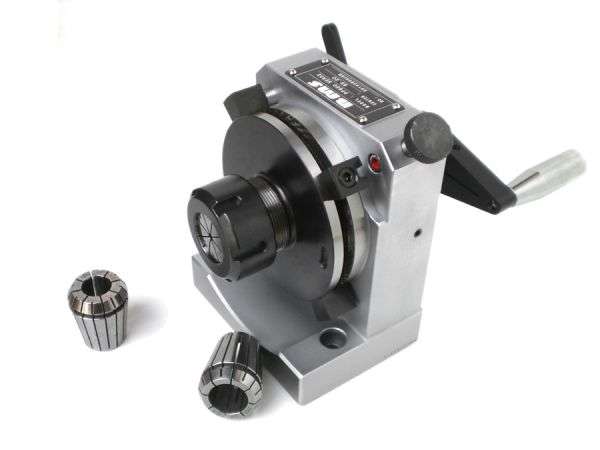

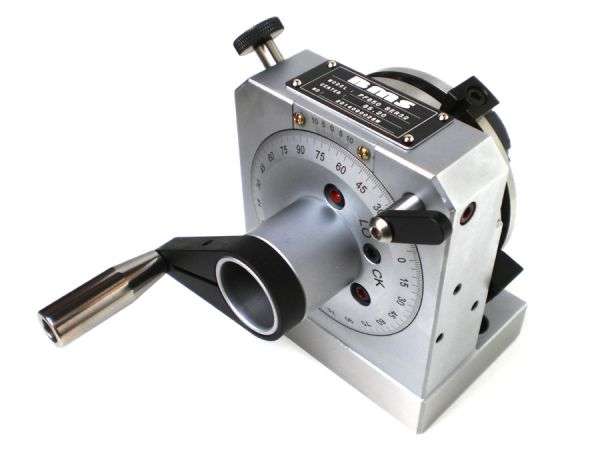

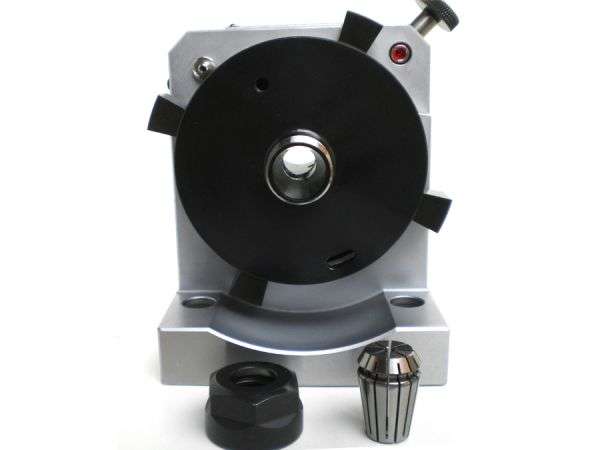

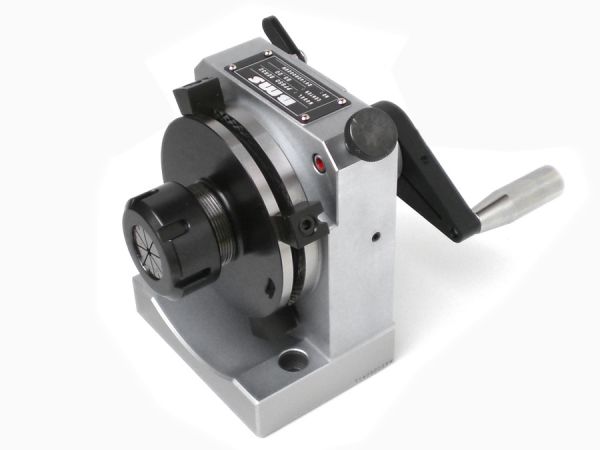

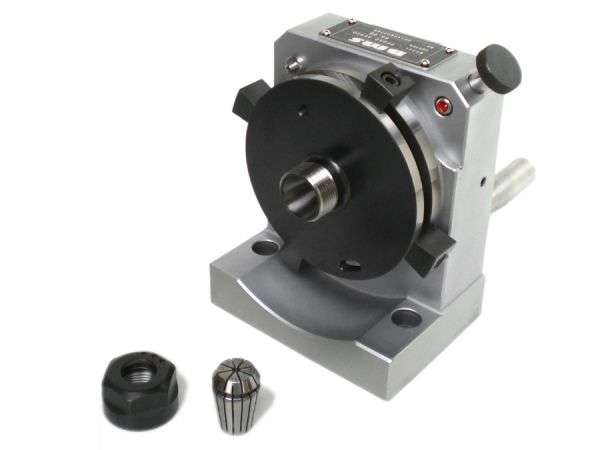

Punch former with collet type AER/P85
print
REF 40.12S
  • 40-12s-08-5398
  • 40-12s-01-5393
  • 40-12s-09-5399

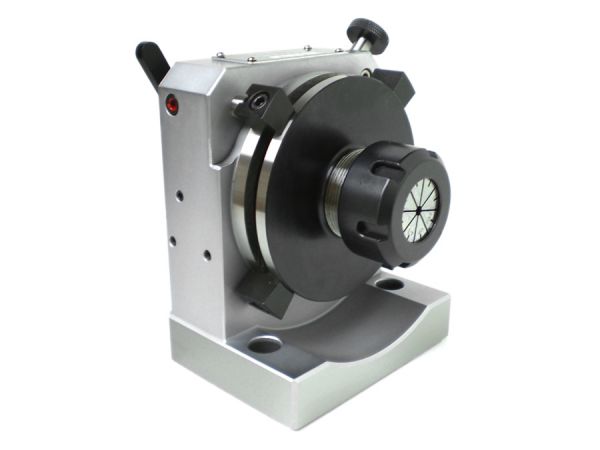

  • 40-12s-06-5396

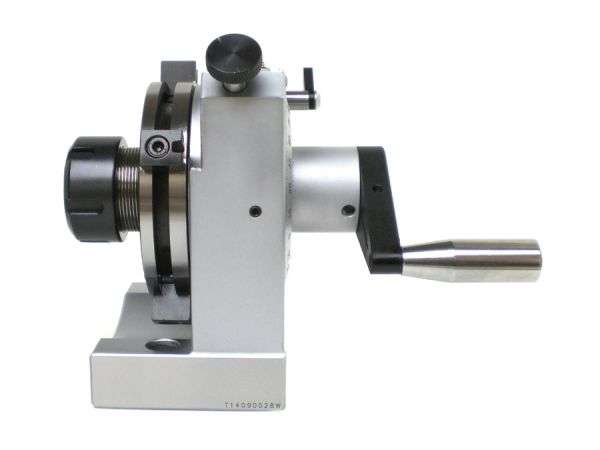

  • 40-12s-02-5394

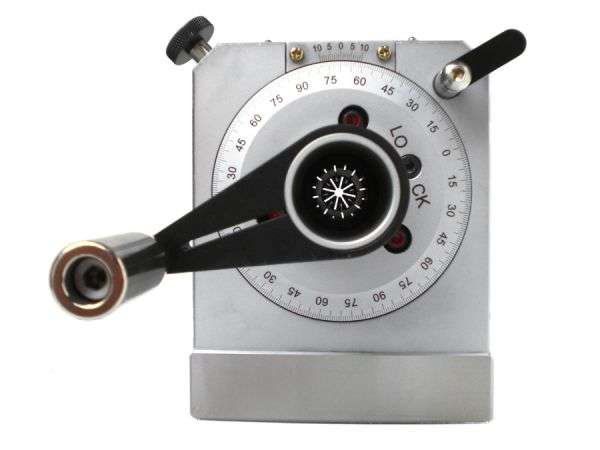

  • 40-12s-03-5392
  • 40-12s-04-5395

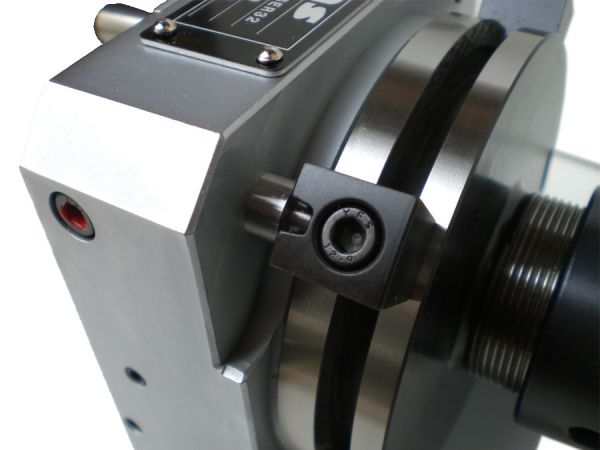

  • 40-12s-05-5397

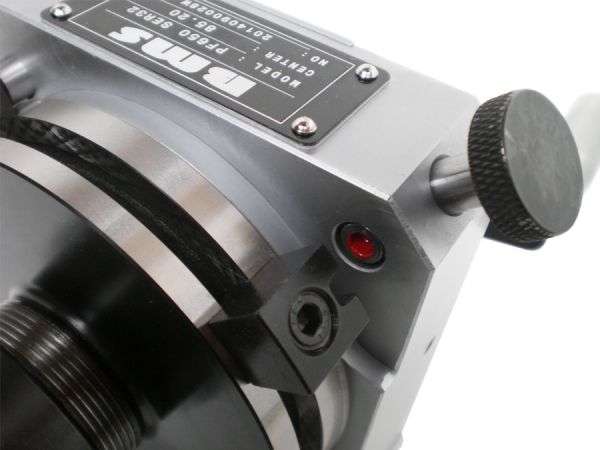

  • 40-12s-07-5400
  • 40-12s-10-5401

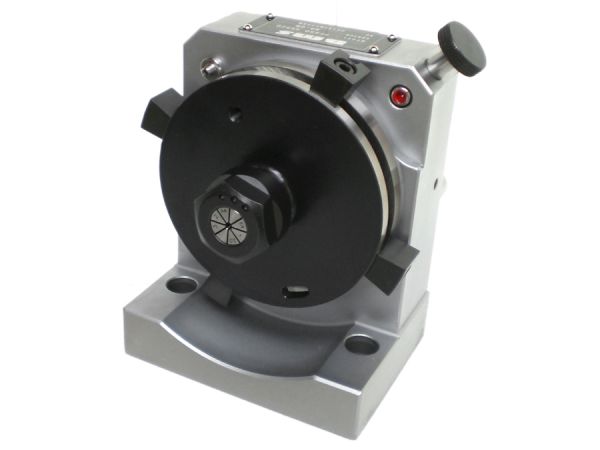

  • 40-12s-11-5402
40-12s-08-539840-12s-01-539340-12s-09-539940-12s-06-539640-12s-02-539440-12s-03-539240-12s-04-539540-12s-05-539740-12s-07-540040-12s-10-540140-12s-11-5402

Punch former with collet type AER/P85

    • Heavy duty construction
    • Innovative
    • Safe
    • Effective

. Collet system
. Made of hardened tool steel
. Hardenned and precision ground

. ER20 Collet 3, 4, 6, 8, 10 mm
. ER32 Collet 4, 8, 12, 16, 20 mm
. ER40 Collet 6, 10, 16, 20, 25 mm
. 15 divisions acuracy ± 30 sec.
. Through hole Ø 30 mm
. Concentricity 0.003 mm
  • Use :
    • Grinding
    • metrology
    • Punch former

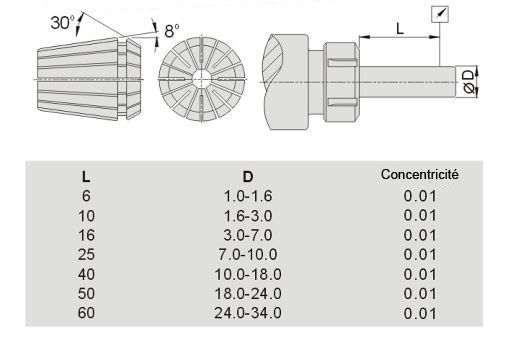

schema-precision-36021

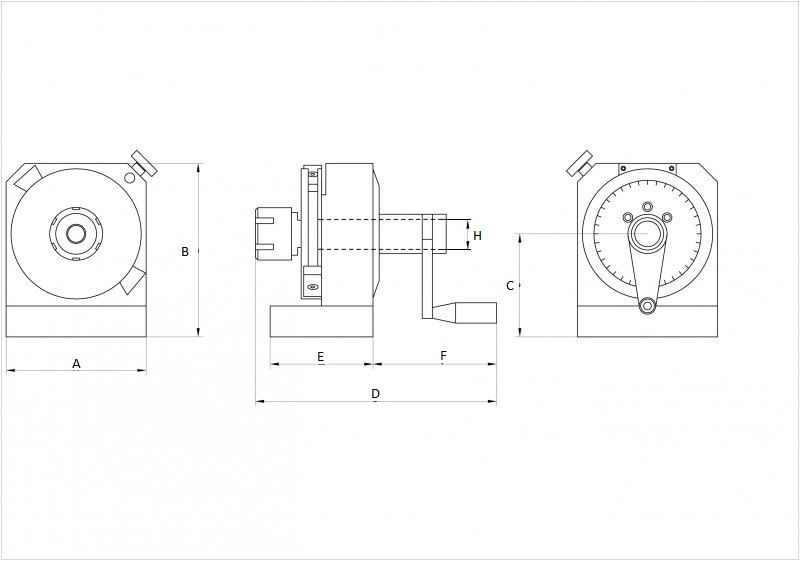

40-12s-36159

Qty Product Weight in kg A B C D E F G H
40.12S.205,511314085191,28399,7Ø30
40.12S.326,511314085191,28399,7Ø30
40.12S.406,611314085191,28399,7Ø30
indication_tableau_dessus
