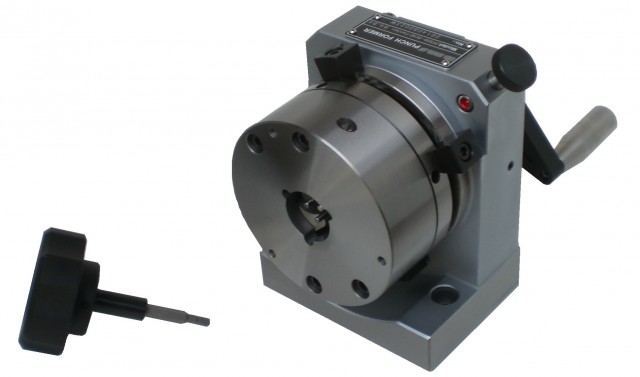

Punch former with 3 jaw chuck type AER/M85 B40

    • Heavy duty construction
    • Innovative
    • Safe
    • Effective

. Tool steel. All hardened and precision ground parts.
. Double bearing for maximum accuracy and stability,
. 15 degree pitch: by +/- 30 seconds
. Shaft height 85 mm +/- 0.5 mm
. Through Hole: 25 mm
. Concentricity: 0.003 mm

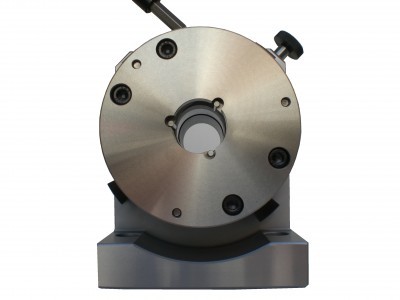

B40: with collets
         Tensionable diameter 1-25 mm

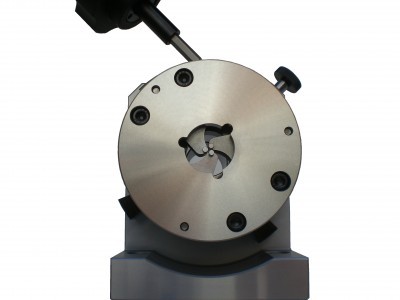

B04: 3-jaw chuck
         Tensionable diameter 3-32 mm
  • Use :
    • Grinding
    • metrology
    • Punch former
40-13s-b40-36027

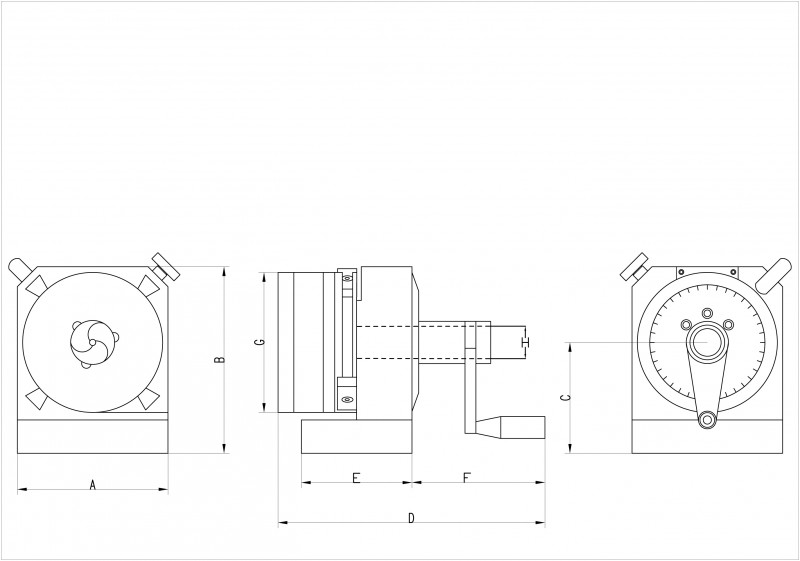

Qty Product Weight in kg A B C D E F G H
40.13S.B408.511314085201,68399,7Ø100Ø30
