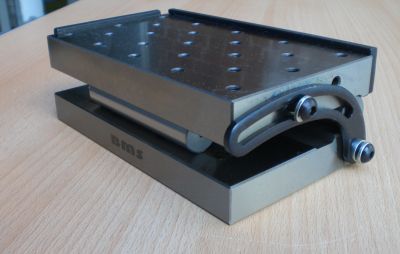

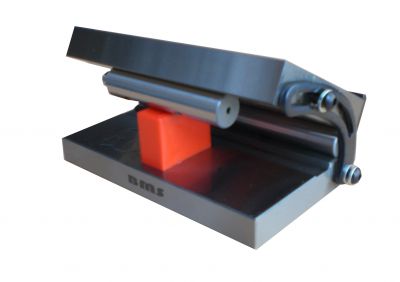

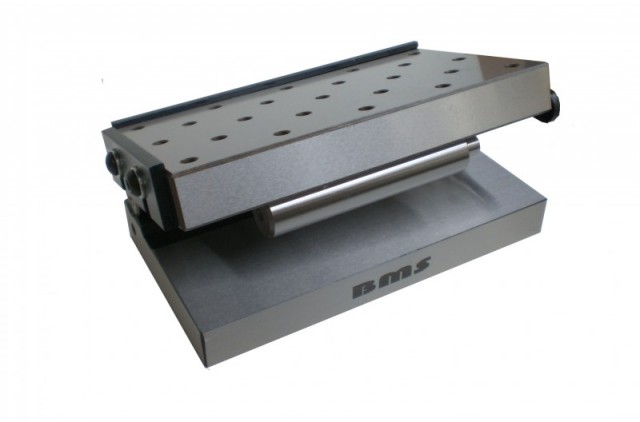

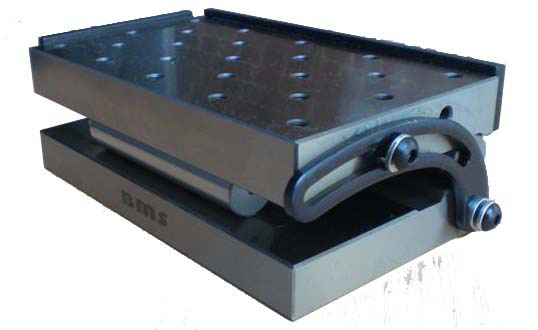

Precision Sine Table without Magnetic Chuck type SS
print
REF 12.03
  • 12-03-800x400-36129
  • 12.03-SINE TABLE TYPE SS Standard
  • Sinustisch mit Raster
  • table sinus- Sinustisch
12-03-800x400-3612912.03-SINE TABLE TYPE SS StandardSinustisch mit Rastertable sinus- Sinustisch

Precision Sine Table without Magnetic Chuck type SS

    • Heavy duty construction
    • Low height

. Precision-ground steel base body hardened to 58 HRC
. Swiveling on long axis from 0° to 60°
. Equipped with threaded holes
Included with purchase:
- Table of sines
  • Use :
    • Grinding
    • EDM
    • metrology
  • Angular accuracy :
    • ± 5 sec
  • Parallelism :
    • ±0.005/100 mm

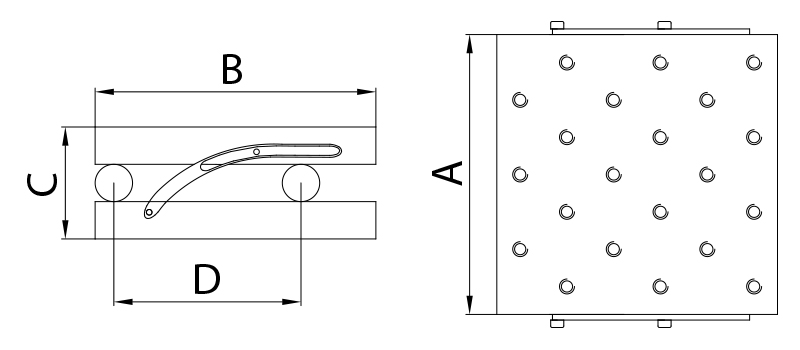

12-03-800px-5027

Qty Product Weight in kg A B C D
12.03.1751006,51751006075
12.03.1501508,115015060100
12.03.30015015,830015060100
indication_tableau_dessus
To request a quote
  • Enter quantities in the table above
  • Fill in the contact form below
