Precision multifunction punch former type AER/85-XS
print
REF 40.21.SC.0405

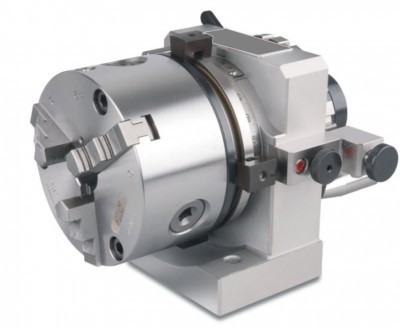

  • 40-21-85-sc04-05-35595-2-36135

Precision multifunction punch former type AER/85-XS

    • Heavy duty construction
    • Waterproof construction
    • Innovative
    • Effective

, Latest generation stainless steel
, Hardened and precision ground all parts.
, 15 degree pitch: of +/- 5 seconds
, Min Diameter: 2 mm
, Concentricity: 0.003 mm

Options:
, EROWA chucks
, 3-jaw chuck / Pliers
, ER collets

D = clampable diameter (in mm)
  • Use :
    • Grinding
    • metrology
    • Punch former

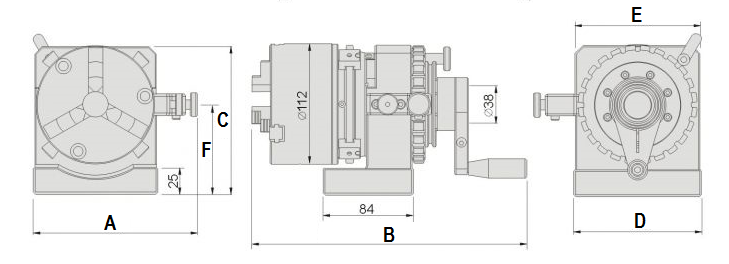

40-21-85-sc-schema-35594

Qty Product Weight in kg A B C D E F G H
40.21.858,01551901401188485-38
40.21.85.SC049,01552571401188485Ø 3-90 mm38
40.21.85.SC0515,01552661401188485Ø 3-110 mm38
indication_tableau_dessus
