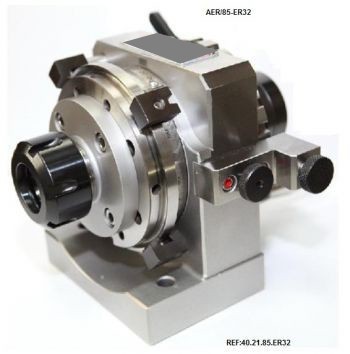

Precision multifunction punch former type AER/85-XS
print
REF 40.21.ER
  • 40-21-85-er32-1680-35615-36137

Precision multifunction punch former type AER/85-XS

    • Heavy duty construction
    • Waterproof construction
    • Innovative
    • Effective

, Latest generation stainless steel
, Hardened and precision ground all parts.
, 15 degree pitch: of +/- 5 seconds
, Min Diameter: 2 mm
, Concentricity: 0.003 mm

Options:
, EROWA chucks
, 3-jaw chuck / Pliers
, ER collets

D = clampable diameter (in mm)
  • Use :
    • Grinding
    • metrology
    • Punch former

Qty Product Weight in kg A B C D E F G H
40.21.858,515519014011811585-38
40.21.85.ER208,515519014011811585Ø3-1038
40.21.85.ER328,515519014011811585Ø4-2038
40.21.85.ER508,515519014011811585Ø12-3438
indication_tableau_dessus
