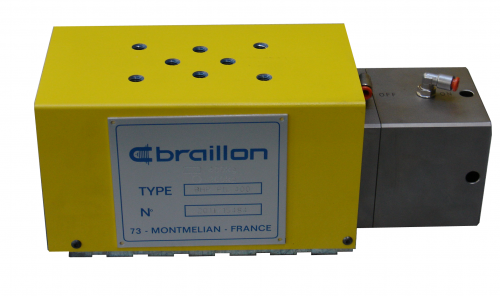

Pneumatically Operated Permanent Lifting Magnet type BHP-PN

    • High holding power
    • Effective
    • Heavy duty & compact construction

. Very high holding force, ideal for robot systems
. Permanent magnetic system with NEODYMIUM (rare earth) magnets
. Pneumatically operated, without electric current
. Safety factor of 3

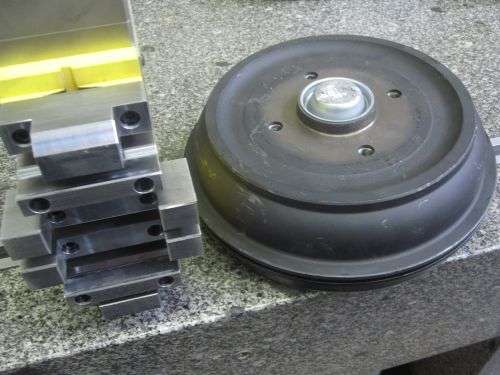

. For use with both flat and round material
. Required air pressure: 6 bar, time of switching on/off: 300 ms
. Maximum operating temperature 80°C
Included with purchase:
- Mounting threaded holes
  • Use :

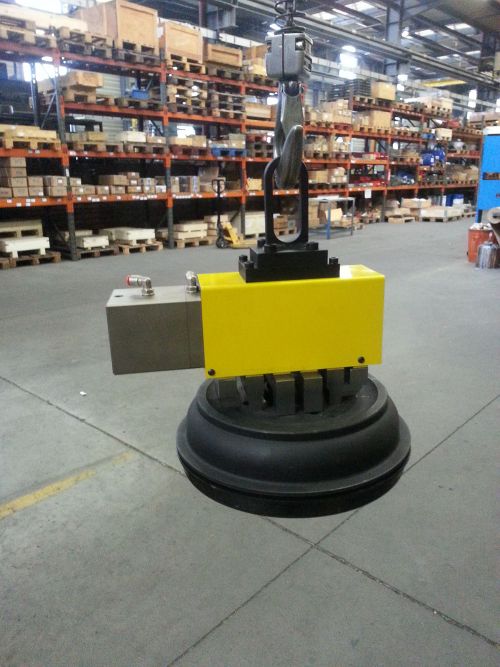

    • Lifting
    • Handling

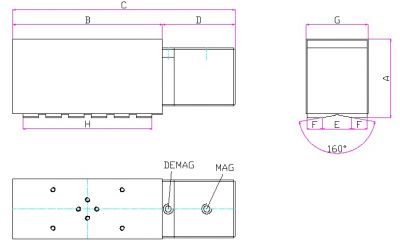

20.09 TYPE BHP-PN

Qty Product Weight in kg A B C D E F G H I
20.09.200.PN121021942889435207816740-160
20.09.400.PN28129224319955336128197120-220
