PF2R magnetic swivel chuck
print
REF 12.14
  • plateau magnétique orientable

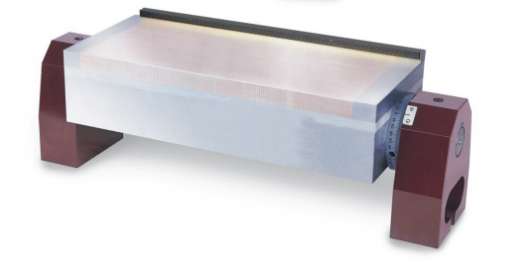

PF2R magnetic swivel chuck

    • Heavy duty construction
    • Waterproof construction
    • Low magnetic field

Neodymium permanent-magnet magnetic chuck mounted on 0-90° swivel bracket.
Quick angle adjustment with built-in vernier.
Angle lock on integrated bearing.
Supplied with arming key
  • Use :
    • Grinding
    • Mounting
    • Polishing
  • Pole pitch :
    • 2 mm
12-14-36291

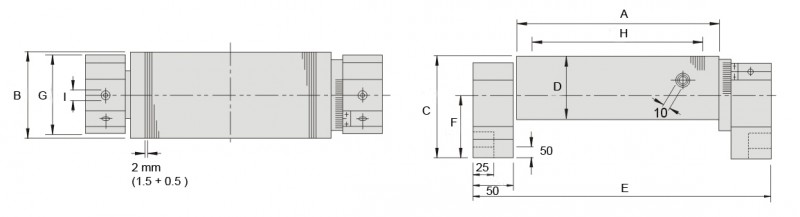

Qty Product Weight in kg A B C D E F G H I
12.14.175100191751001457828310310012516
12.14.25012529,52501251457836810310020016
12.14.300150383001501457841810310024616
12.14.350150423501501457846810310029616
12.14.450150524501501457856810310039616
indication_tableau_dessus
