Permanent Magnets and Magnetic Circular Holders
Raw Magnets
Permanent samarium magnet ring type AS 03
REF 82.03
  • aimant samarium annulaire

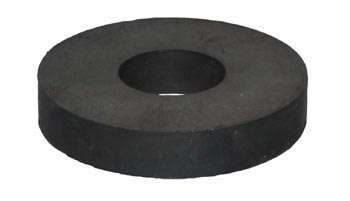

Permanent samarium magnet ring type AS 03

    • Samarium magnet
    • High holding power

. Samarium cobalt magnets are sintered magnets composed of samarium powder and cobalt. They have a high magnetic strength and are fragile ceramics that should not be in presence of chlorine and hydrogen.
. The strength is highest when the magnet is in contact with a mild steel, that is clean and thick enough. The strength is reduced when in contact with alloy steels (cast Iron -30%), due to air-gap or a high temperature (-0.04% per degree °C). Samarium magnets are not machinable, they can not be cut or drilled and mounting is done with glue. Magnetized depending on thickness.
  • Use :
    • High Tp° system
    • Prosthesis medical
  • Max. temperature of use :
    • 250 °C
  • Density :
    • 8.2 gr/cm³
  • Max. surface induction :
    • 4000 G
Options :
All sizes available on request.
aimant samarium annulaire

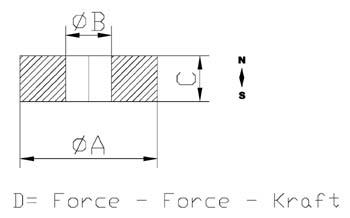

Qty Product Weight in kg A B C D
