Permanent rectangular samarium magnet AS 02
print
REF 82.02
  • 82-02

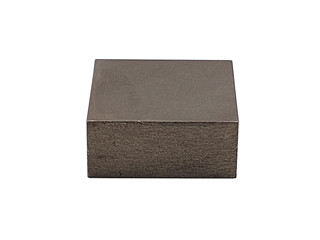

Permanent rectangular samarium magnet AS 02

    • Samarium magnet
    • High holding power

. Samarium cobalt magnets are sintered magnets composed of samarium powder and cobalt. They have a high magnetic strength and are fragile ceramics that should not be in presence of chlorine and hydrogen.
. The strength is highest when the magnet is in contact with a mild steel, that is clean and thick enough. The strength is reduced when in contact with alloy steels (cast Iron -30%), due to air-gap or a high temperature (-0.04% per degree °C). Samarium magnets are not machinable, they can not be cut or drilled and mounting is done with glue. Magnetized depending on thickness.
  • Use :
    • High Tp° system
    • Prosthesis medical
  • Max. temperature of use :
    • 250 °C
  • Density :
    • 8.2 gr/cm³
  • Max. surface induction :
    • 4000 G
Options :
All sizes available on request.

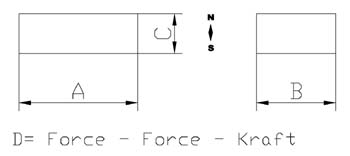

aimant samarium rectangulaire

Qty Product Weight in kg A B C D
82.02-7.5x4x1.50.00047.541.53.4N
82.02-7.5x6x20.00077.5625N
82.02-10x5x30.00121053/
82.02-10x7.5x20.0013107.527.5N
82.02-12x9.5x2.50.0025129.52.511N
82.02-12.5x6.5x5.50.00412.56.55.5/
82.02-15x15x30.00615153/
82.02-16x12.5x2.50.0041612.52.515N
82.02-18x16.5x40.0101816.5429N
82.02-20x10x2.50.00420102.5/
82.02-20x10x50.00820105/
82.02-20x12x50.01020125/
82.02-25x8x60.0102586/
82.02-26x20.3x50.0222620.3551N
82.02-30x10x60.01530106/
82.02-33x26.3x6.50.0473326.36.585N
82.02-50x50x250.512505025/
82.02-62x62x20.06562622/
82.02-62x62x40.13062624/
82.02-62x62x100.315626210/
82.02-100x100x30.2451001003/
82.02-100x100x50.4101001005/
82.02-100x100x100.82010010010/
82.02-2x2x1-221/
82.02-4x4x2-442/
82.02-5x5x1.5-551.5/
82.02-5x5x3-553/
82.02-13x7x2.5-1372.5/
indication_tableau_dessus
