Permanent rectangular multi polar ferrite magnet AF 04.MP
print
REF 80.04.MP
  • aimant ferrite rectangulaire

Permanent rectangular multi polar ferrite magnet AF 04.MP

    • Ferrite magnet

Isotropic or anisotropic ferrite magnets are rust resistant ceramics and have a dark brown color, obtained through a metallurgic procedure of pressing and sintering powders.  Ferrite is a hard material but sensitive to shocks and its strength is highest when the magnet is in contact with a mild steel, that is clean and thick enough. The strength is reduced when in contact with Alloy steels (cast Iron -30%), due to air-gap or a high temperature (-0.4% per degree starting at 20°C). Ferrite magnets are not machinable, they can not be cut or drilled. The mounting is done with glue. Magnetized depending on thickness.
  • Use :
    • I
    • Relay
    • Sensor
    • Lock
  • Max. temperature of use :
    • 200 °C
  • Density :
    • 4.8 gr/cm³
  • Resistance in compression :
    • 500 N/mm²
  • Max. surface induction :
    • 1500 G
Options :
All dimensions on request.
aimant ferrite rectangulaire

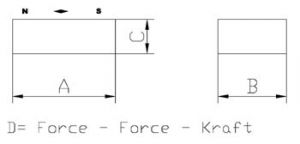

Qty Product Weight in kg A B C D
80.04MP-18x9.5x4.90.004189.54.93N
80.04MP-30x15x50.010301556N
80.04MP-50x15x60.0225015611N
indication_tableau_dessus
