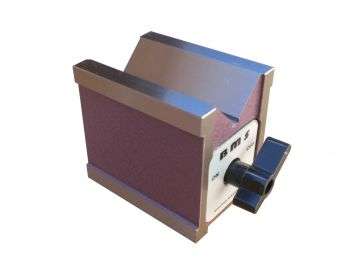

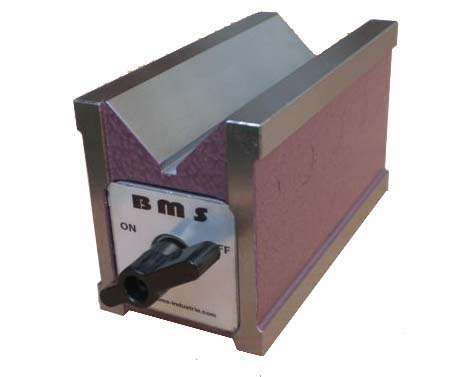

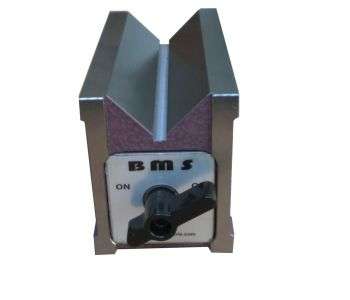

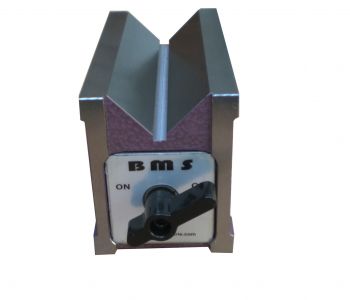

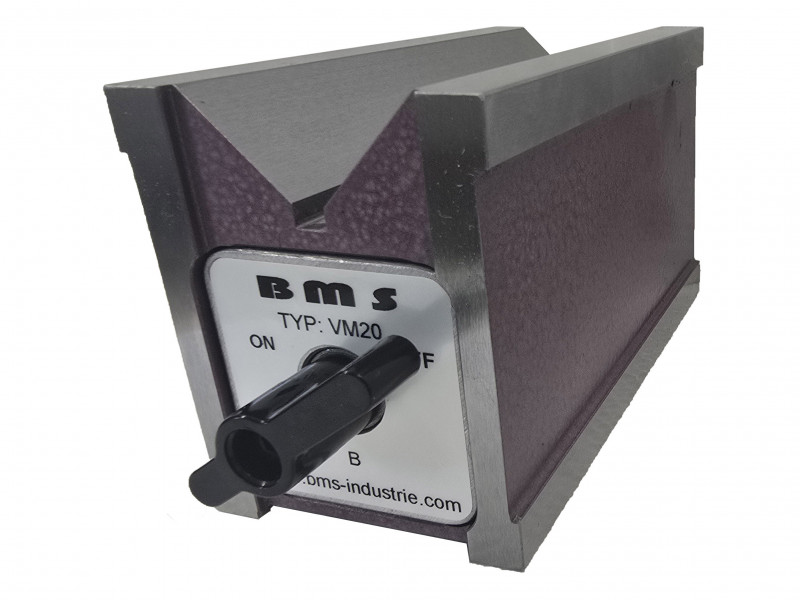

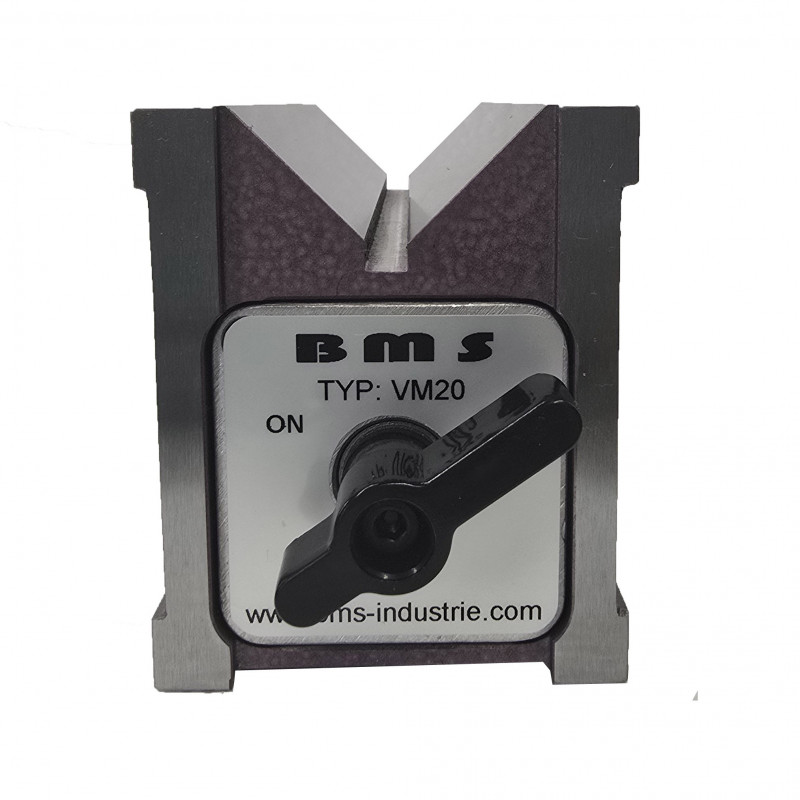

Permanent Magnetic Vee BLock type VM20

    • Heavy duty construction
    • Waterproof construction

. 3 active faces (vee, bottom, rear)
. Stable construction
. With integrated ON/OFF switch
Included with purchase:
- with key

  • Use :
    • Grinding
    • EDM
    • metrology
    • Positionning
  • Parallelism :
    • mm

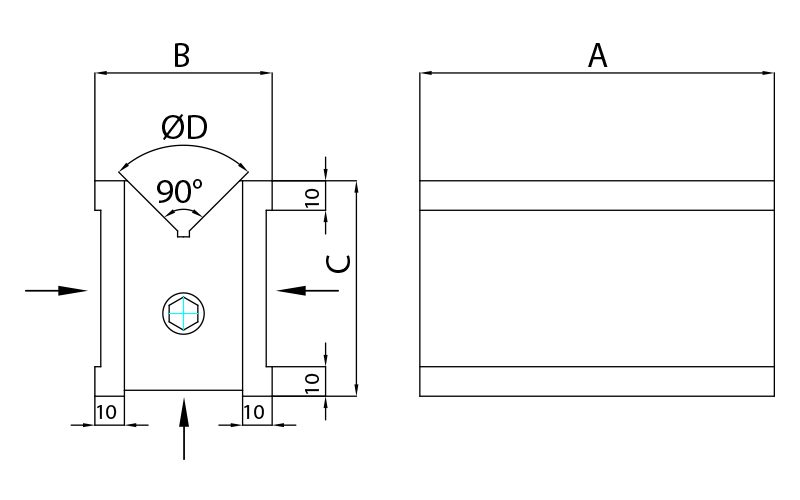

13-32-800px-5038

E = Force
Qty Product Weight in kg A B C D E F
13.32.802,0806073Ø8-5030daN0,01 mm
13.32.1253,01256073Ø8-5045daN0,015 mm
13.32.1804,51806073Ø8-5070daN0,03 mm
