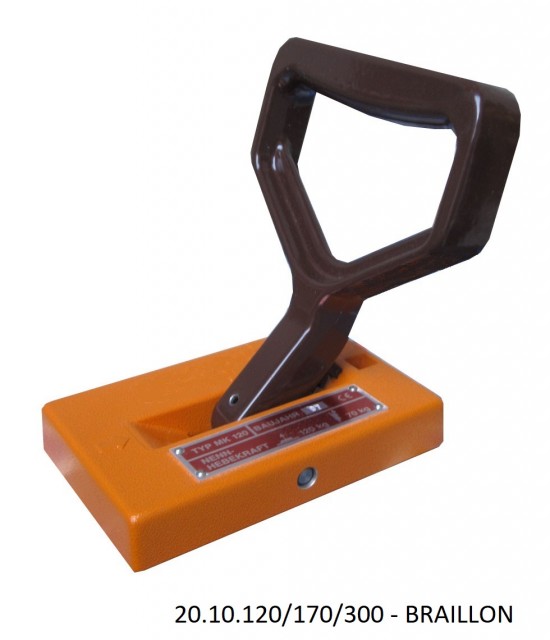

Permanent magnetic plate lifter type GPM

    • From 120 to 300 Kg
    • High holding power
    • Safe
    • Effective
    • Heavy duty & compact construction

. Very high holding force
. Steel housing

. Handling of sheets in either horizontal or vertical position
. Switching OFF by pushing the handle against the workpiece


20.10.120MC2: in plastic housing

Attention ! - do not use it for crane hoisting !  - Article for crane hoisting = 20.11


D = Force
E = Vertical force
F = Thickness of the workpiece

  • Use :
    • Lifting
    • Handling

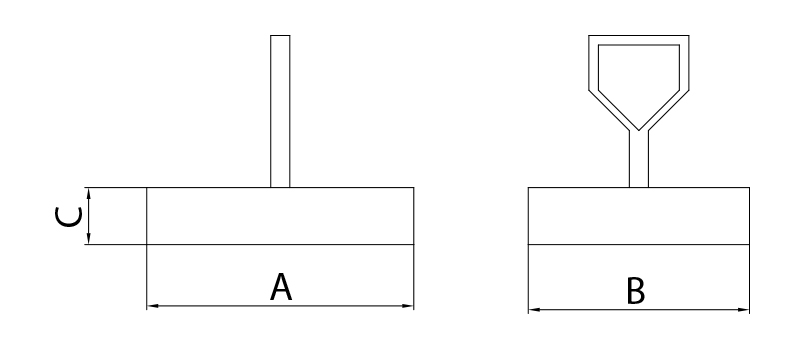

20-10-800px-5069

Qty Product Weight in kg A B C D E F
20.10.1201,41408427120daN70daN1-2 mm
20.10.1701,914011635170daN100daN1-5 mm
20.10.3003,516018035300daN180daN2-10 mm
20.10.120MC21,416015027120daN35daN-
