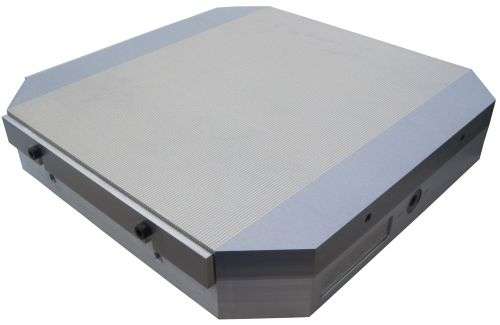

  • 40.60 PF2PAL magnetic chuck with neodymium magnets
  • magnetic chuck for palletizing

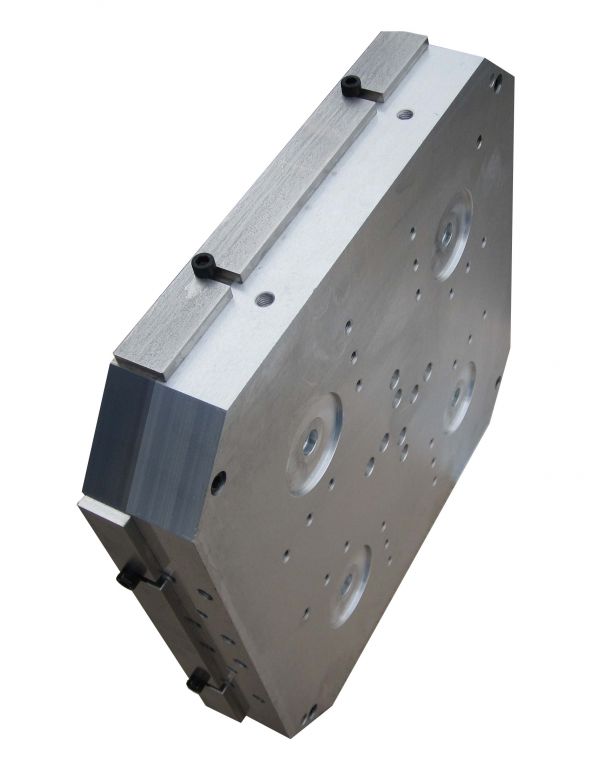

  • 40-60-01a-2009-5262

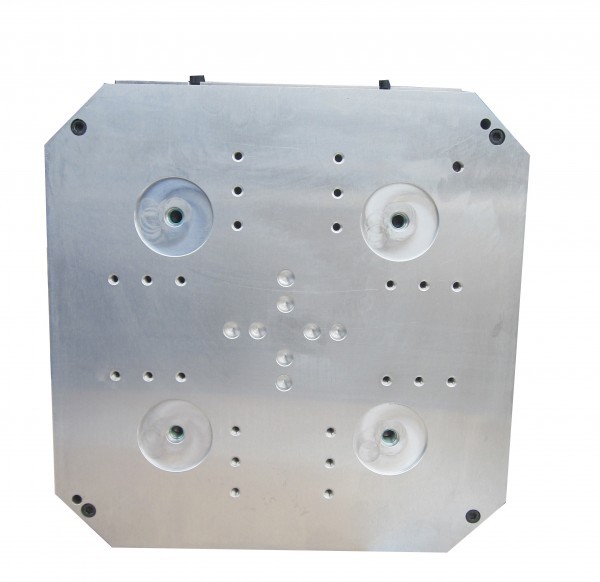

  • img-4057-kopie-36184
  • magnetic chuck erowa
  • 40.60 PF2PAL magnetic chuck with neodymium magnets
  • 40.60 PF2PAL magnetic chuck with neodymium magnets

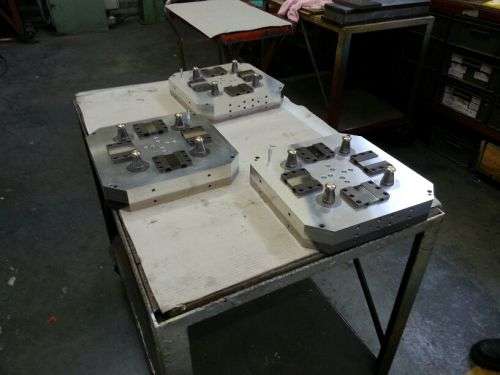

  • 20140328-110759-resized-2129-5260
40.60 PF2PAL magnetic chuck with neodymium magnetsmagnetic chuck for palletizing40-60-01a-2009-5262img-4057-kopie-36184magnetic chuck erowa40.60 PF2PAL magnetic chuck with neodymium magnets40.60 PF2PAL magnetic chuck with neodymium magnets20140328-110759-resized-2129-5260

Permanent magnetic palett for spark erosion type PF2-PAL

    • High holding power
    • Stabil top plate
    • Power adjustable
    • Long service life

. Permanent magnetic chuck with NEODYNIUM (rare earth) magnets
. Parallel fine pole pitch steel + brass
. Without special adaptation
  • Use :
    • Grinding
    • EDM
    • metrology
  • Nominal force :
    • 100 N/cm²
  • Pole pitch :
    • 2 mm
    • 0.5 mm of brass
    • 1.5 mm of steel
  • Admissible wear of top plate :
    • 5 mm
  • Magnetic field height :
    • 3 mm
Options :
All the BMS palettes can be deliver in simple version (without special machining) or for palettizing system: EROWA-3R-HIRSCHMANN-V&B ...
A BMS specialist will inform you.

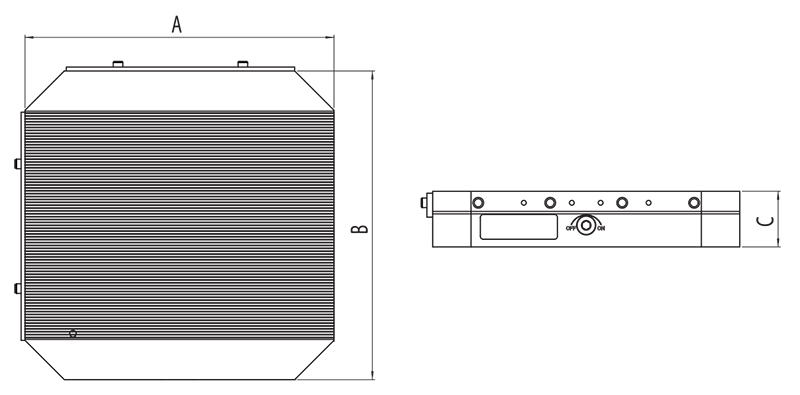

sch-40-60-01-800px-36443

Qty Product Weight in kg A B C
40.60.01.150150815015045
40.60.01.2501501325015045
40.60.01.2402402024024058
40.60.01.3203203232032058
indication_tableau_dessus
