Permanent Magnetic Chuck type FF
print
REF 10.04
  • PERMANENT MAGNETIC CHUCK FOR EDM TYPE FF

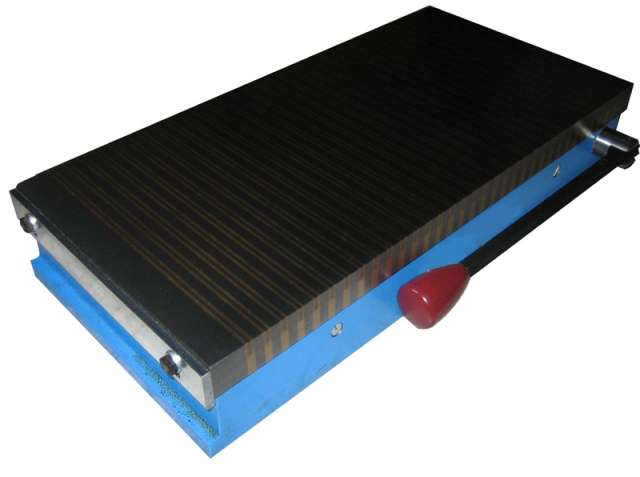

Permanent Magnetic Chuck type FF

    • Silver brazed top plate
    • Heavy duty construction
    • Waterproof construction
    • Low magnetic field

. Permanent magnetic chuck with FERRITE magnets
. Parallel fine pole pitch with steel + brass
. Integrated actuating handle
Included with purchase:
- Long and short side end stops
- Clamps

  • Use :
    • Grinding
    • EDM
  • Nominal force :
    • 80 N/cm²
  • Pole pitch :
    • 11 mm
  • Admissible wear of top plate :
    • 8 mm
  • Magnetic field height :
    • 4-5 mm
Options :
- Sine table execution
- Part of palletizing system: Erowa, 3R, Hirschmann, Vischer & Boli
- Flushing holes in the top plate



Permanent Magnetplatte zum Schleifen

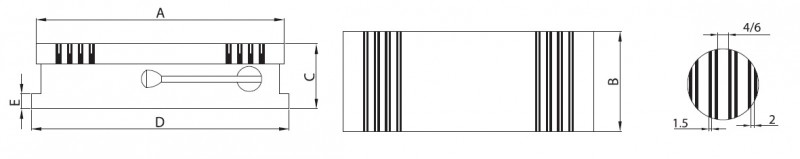

10-04b-36247

Qty Product Weight in kg A B C D E
10.04.100653,0100655411910
10.04.1501007,01501006516515
10.04.250150152501506525815
10.04.350150213501506535813
10.04.450150264501506545815
10.04.400200324002007241315
10.04.500200405002007251515
10.04.6003001006003009359520
indication_tableau_dessus
