PERMANENT MAGNETIC CHUCK FOR MILLING TYPE TF2
print
REF 10.03
  • 10.03-tf2-magnetic chuck with permanent magnets
  • 10-03-braillon-permanent-fr-smagnetplatte-36727
  • 10.03-tf2-magnetic chuck with permanent magnets
  • magnetic chuck neodymium magnets
  • 10-03-permanent-fr-smagnetplatte-mit-spezialpolschuhen-36726
  • 10.03-tf2-magnetic chuck with permanent magnets
  • Permanent-Magnet-Fräsplatte Typ TF2
10.03-tf2-magnetic chuck with permanent magnets10-03-braillon-permanent-fr-smagnetplatte-3672710.03-tf2-magnetic chuck with permanent magnetsmagnetic chuck neodymium magnets10-03-permanent-fr-smagnetplatte-mit-spezialpolschuhen-3672610.03-tf2-magnetic chuck with permanent magnetsPermanent-Magnet-Fräsplatte Typ TF2

PERMANENT MAGNETIC CHUCK FOR MILLING TYPE TF2

    • High holding power
    • Twin magnetic system
    • Heavy duty construction
    • Waterproof construction

. Twin magnetic system (magnets inserted into the body and into the top plate)
. Magnetic system wih Neodymium magnets
. Brass separations between the magnetic poles
Included with purchase:
- 1 Actuating key
- Long and short side end stops
- Clamps

  • Use :
    • Milling
    • Drilling
    • Contouring
    • Machining
    • Planning
  • Nominal force :
    • 150 N/cm²
  • Pole pitch :
    • 15 mm
    • 4 mm of brass
    • 11 mm of steel
  • Admissible wear of top plate :
    • 6 mm
  • Magnetic field height :
    • 10 mm
Options :

- Sine table execution
- Fitted to an angle iron for tombstone application
- Part of palletizing system: Erowa, 3R, Hirschmann, Vischer & Boli

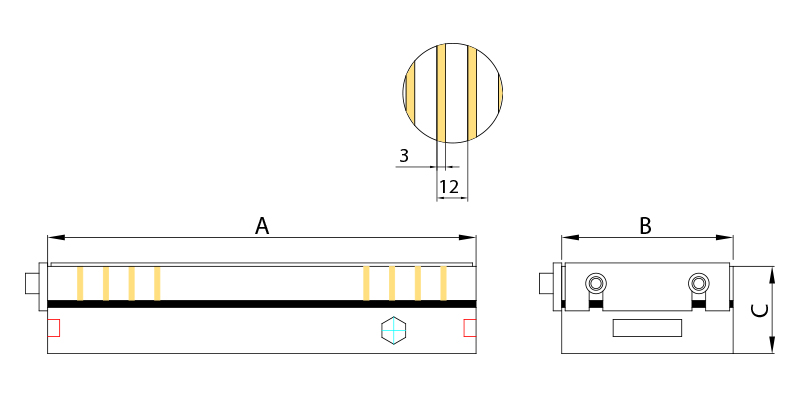

10-03-800px-5007

Qty Product Weight in kg A B C
10.03.25015017,025015055
10.03.30015020,030015055
10.03.35015023,535015055
10.03.45015032,045015055
10.03.30020030,030020060
10.03.40020039,040020060
10.03.45020043,045020060
10.03.50020048,050020060
10.03.60020058,060020060
10.03.40025048,540025065
10.03.50025060,050025065
10.03.40030058,040030060
10.03.50030072,050030065
10.03.60030087,060030065
