Permanent Magnetic Base for Dial Indicator type MSC
print
REF 13.26.MSC
  • 13-26-MSC
  • 13-26-MSC60
  • 13-26-MSC80
  • 13-26-MSC140

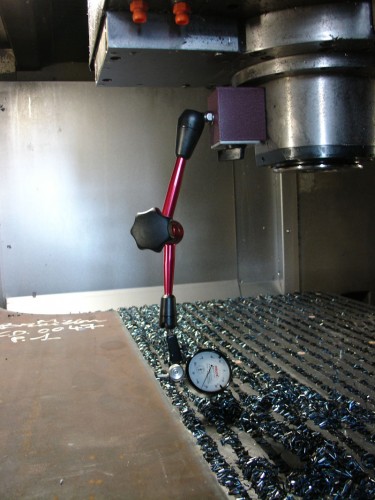

  • dsc03395-35621
13-26-MSC13-26-MSC6013-26-MSC8013-26-MSC140dsc03395-35621

Permanent Magnetic Base for Dial Indicator type MSC

    • Heavy duty construction

. Magetic base for dial indicator
. ON/OFF switch
. mechanical position locking system
. Highest quality

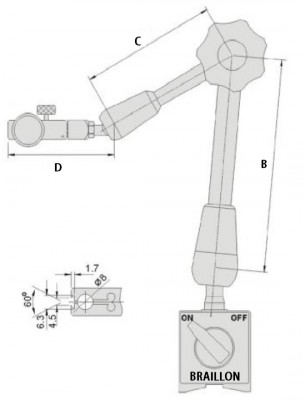

Details datasheet:
A = Dimension of the magnetic base in mm
B = Length of the vertical arm in mm
C = Length of the horizontal arm in mm
D = Length of the universal swivel clamp in mm
E = Diameter of the dial indicator in mm
F = Force in daN
  • Use :
    • Grinding
    • Milling
    • metrology
13-26a-36140

Qty Product Weight in kg A B C D E F
13.26.MSC601,560x50x55858060880 daN
13.26.MSC801,660x50x5513511070880 daN
13.26.MSC1401,975x50x551451308010100 daN
indication_tableau_dessus
To request a quote
  • Enter quantities in the table above
  • Fill in the contact form below
Fields with an asterisk * must not be left blank
