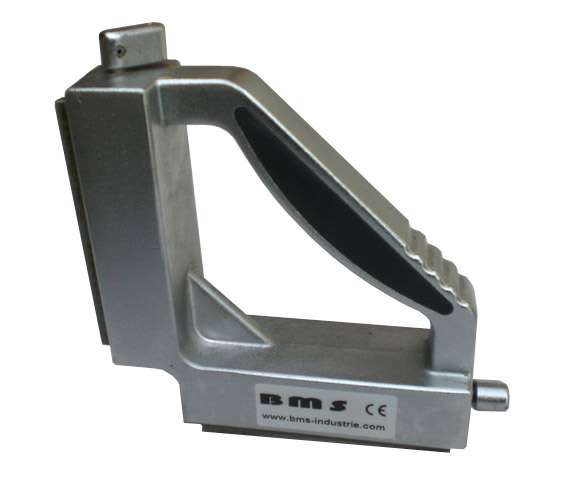

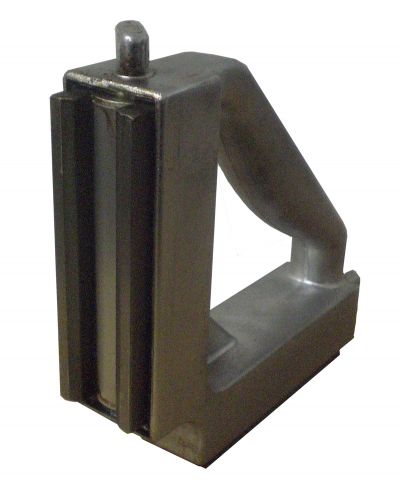

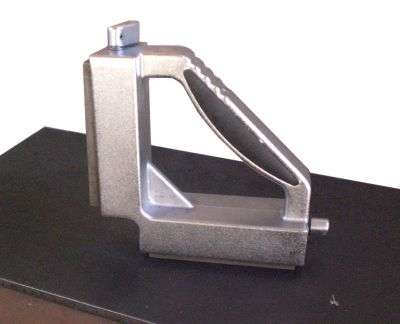

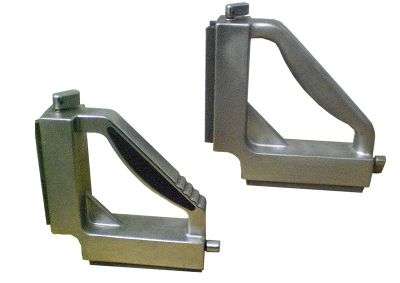

Permanent Magnetic Angle Holder type PMA

    • Heavy duty construction
    • Waterproof construction
    • Long service life
    • Safe
    • Effective

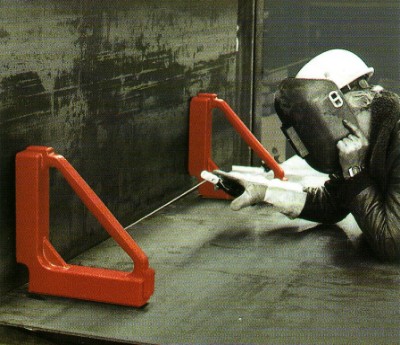

. For holding of welded elements at 90°
. 2 active faces
. Robust construction with ferrite magnets
. Fixed 90° angle
. To be used exlusively for holding welded elements together

N = for clean pieces
R = for rough pieces
T = for round pieces
B = for high magnetic force
TC = with V poles for pieces and ON/OFF mechanism


  • Use :
    • Positionning

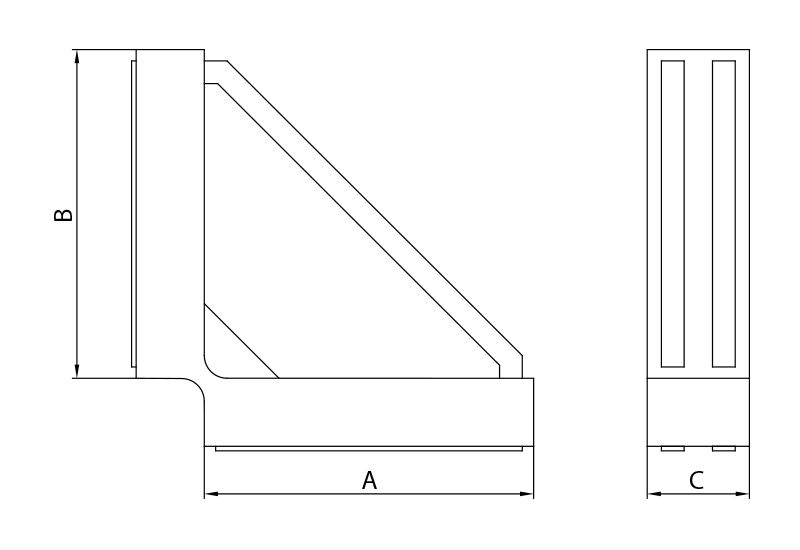

17-20-800px-5057

D = Force
Qty Product Weight in kg A B C D
17.20.115N0,71151053825/25 Kg
17.20.145N1,11451454540/40 Kg
17.20.175N1,61751754855/55 Kg
17.20.260N2,12601754890/75 Kg
17.20.230N3,12302306060/60 Kg
17.20.330N4,33302406090/85 Kg
17.20.320N5,03203206090/90 Kg
17.20.115R0,751151053835/35 Kg
17.20.145R1,151451454560/60 Kg
17.20.175R1,71751754875/75 Kg
17.20.260R2,226017548110/75 Kg
17.20.230R3,32302306085/85 Kg
17.20.330R4,533024060110/85 Kg
17.20.320R5,232032060110/110 Kg
17.20.120T1,251201103820/20 Kg
17.20.150T1,251501504530/30 Kg
17.20.180T1,81801804835/35 Kg
17.20.265T2,452651804850/35 Kg
17.20.235T3,12352356050/50 Kg
17.20.350B8,435035060130/150 Kg
17.20.450B11,545045060170/190 Kg
17.20.120TC0,91201103830/30 Kg
17.20.150TC1,71501504550/50 Kg
17.20.195TC2,251801804560/60 Kg
17.20.270TC3,227018048100/60 Kg
indication_tableau_dessus
