Permanent cylindrical multi polar ferrite magnet type AF01. MP
print
REF 80.01MP
  • aimant ferrite

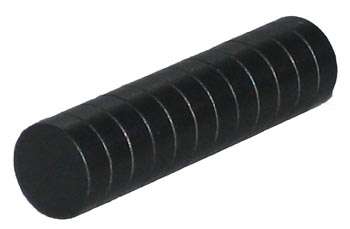

Permanent cylindrical multi polar ferrite magnet type AF01. MP

    • Ferrite magnet

Isotropic or anisotropic ferrite magnets are rust resistant ceramics and have a dark brown color, obtained through a metallurgic procedure of pressing and sintering powders.  Ferrite is a hard material but sensitive to shocks and its strength is highest when the magnet is in contact with a mild steel, that is clean and thick enough. The strength is reduced when in contact with Alloy steels (cast Iron -30%), due to air-gap or a high temperature (-0.4% per degree starting at 20°C). Ferrite magnets are not machinable, they can not be cut or drilled. The mounting is done with glue. Magnetized multipolar 1 face.
  • Use :
    • I
    • Relay
    • Sensor
    • Lock
  • Max. temperature of use :
    • 200 °C
  • Density :
    • 4.8 gr/cm³
  • Resistance in compression :
    • 500 N/mm²
  • Max. surface induction :
    • 1500 G
Options :
All dimensions available on request.
100-01mp-181

Qty Product Weight in kg A B C
80.01MP-8x50.0014850.6N
80.01MP-12x40.0021241N
80.01MP-14x50.00351451.3N
80.01MP-20x50.0072054N
80.01MP-25x50.0112555N
80.01MP-30x50.0173058N
80.01MP-8x4-84-
80.01MP-10x4-104-
80.01MP-14x3-143-
80.01MP-15x6-156-
80.01MP-20x3-203-
80.01MP-25x3-253-
80.01MP-30x3-303-
indication_tableau_dessus
