Orientable magnetic tool type PMR
print
REF 17.22
  • 17.22 Orientable magnetic tool type PMR

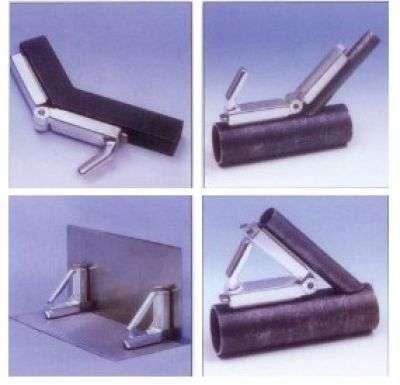

Orientable magnetic tool type PMR

    • Manuel drive
    • Heavy duty construction
    • Waterproof construction
    • Long service life
    • Safe
    • Effective
    • Heavy duty & compact construction

. Angle from 45° to 270°
. Robust construction
. 2 magnetic faces
Model (N) for clean pieces
Model (R) for rough pieces
Model (T) for round pieces
Model (B) for high magnetic force
Model (TC) with V pole pieces and On/Off mechanism

  • Use :
    • Positionning
    • Welding

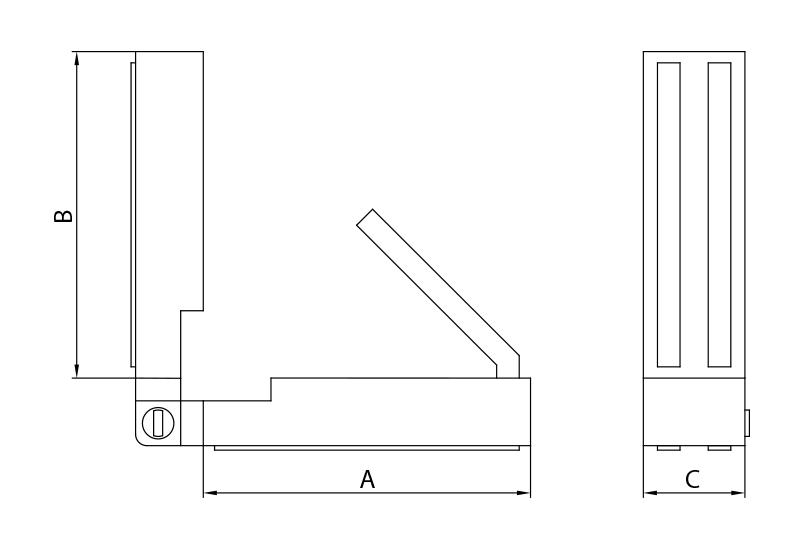

17-22-800px-5058

D = Force
Qty Product Weight in kg A B C D
17.22.130N0.751301303825/25 Kg
17.22.180N1.51801804555/55 Kg
17.22.260N22601804590/75 Kg
17.22.130R0.81301303830/30 Kg
17.22.180R1.551801804575/75 Kg
17.22.260R2.126018045110/75 Kg
17.22.130T0.91301303820/20 Kg
17.22.180T1.71801804535/35 Kg
17.22.260T2.22601804550/35 Kg
17.22.135TC1,01351353830/30 Kg
17.22.190TC2,151901904560/60 Kg
indication_tableau_dessus
