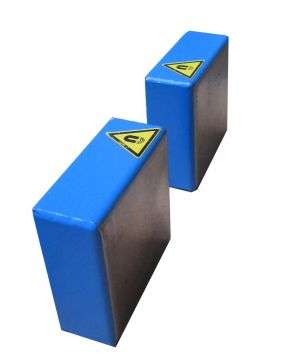

Magnetic Steel Sheet Separator type FLO

Waterproof construction

Long service life

Safe

Effective

Heavy duty & compact construction

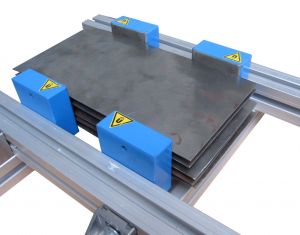

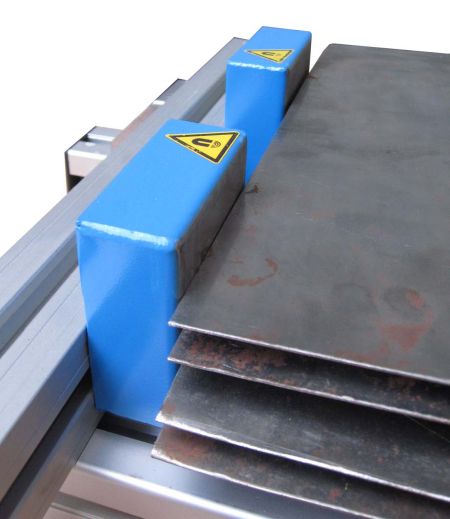

. For separation of stacked steel sheets near automatic sheet metal processing machines
. Stable, made of stainless steel housing

Technical information:
. max surface each separator if the steel sheet is clean: 0.3 m2
. max surface each separator if the steel sheet is oiled: 0.15 m2

Scope of delivery:

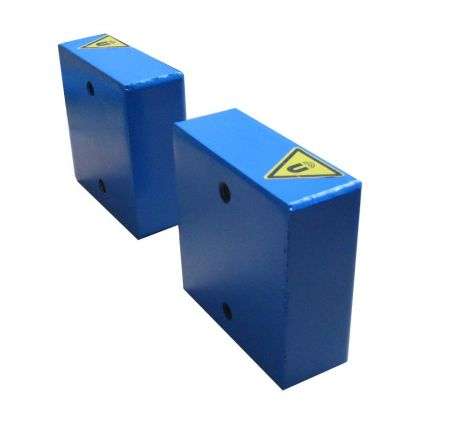

- Threaded mounting holes

information data sheet:
F= thickness of the sheet

Use :
- Steel sheet separation

Product	Weight in kg	A	B	C	D	E	F
17.24.7575.30	1,0	75	75	30	50	2xM8	0.7
17.24.27575.30	3,7	275	75	30	250	2xM8	0.7
17.24.34075.30	4,5	340	75	30	250	2xM8	0.7
17.24.105105.30	1,9	105	105	30	50	2xM8	1
17.24.210105.30	3,9	210	105	30	100	2xM8	1
17.24.310105.30	5,7	310	105	30	200	2xM8	1
17.24.340105.30	6,3	340	105	30	250	2xM8	1
17.24.145105.50	3,8	145	105	50	100	2xM8	2
17.24.210105.50	5,6	210	105	50	100	2xM8	2
17.24.280105.50	7,4	280	105	50	200	2xM8	2
17.24.310105.50	8,2	310	105	50	200	2xM8	2
17.24.345105.50	9,2	345	105	50	250	2xM8	2
17.24.410105.50	10,9	410	105	50	150	3xM8	2
17.24.445105.50	11,8	445	105	50	150	3xM8	2
17.24.510105.50	13,6	510	105	50	200	3xM8	2
17.24.610105.50	16,2	610	105	50	150	4xM8	2
17.24.765105.50	20,3	765	105	50	200	4xM8	2
17.24.280180.90	23,5	280	180	90	200	2xM12	4
17.24.400180.90	33,5	400	180	90	150	3xM12	4
17.24.345280.95	43,5	345	280	95	100	3xM12	6
17.24.545280.95	69,0	545	280	95	150	4xM12	6
17.24.610280.95	77,5	610	280	95	150	4xM12	6
17.24.815280.95	103,0	815	280	95	200	4xM12	6
