MAGNETIC FILTER WITH DISK TYPE MD

    • Universal
    • Motorised
    • Permanent duty cycle
    • High holding power
    • Twin magnetic system
    • Heavy duty construction
    • Long service life

. Filtration of machining liquid (emulsion)- see flow
. Filtration of oils
. Strong magnetic systems
. Steel housing
. Tank and pump on request
  • Use :
    • Separation
    • Filtration
Options :
Pump, Tank
In stainless steel on request
Higher flows are possible
60-51-36477

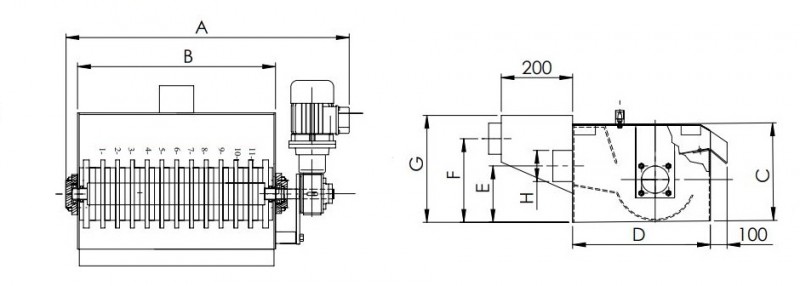

Qty Product Weight in kg A B C D E F G H I
60.51.50353641642253601401702302"50
60.51.100454362362253601401702302"100
60.51.150555443442253601401702303"150
60.51.200606164162253601401702303"200
60.51.250757245242253601401852653"250
60.51.300858326322253601401852653"300
60.51.40011010128122253601401852653"400
60.51.500135122810282253601401852653"500
