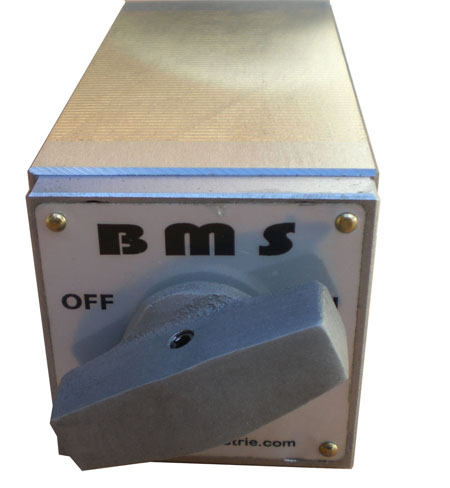

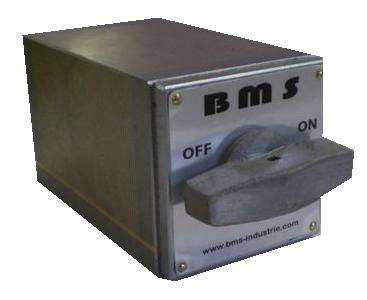

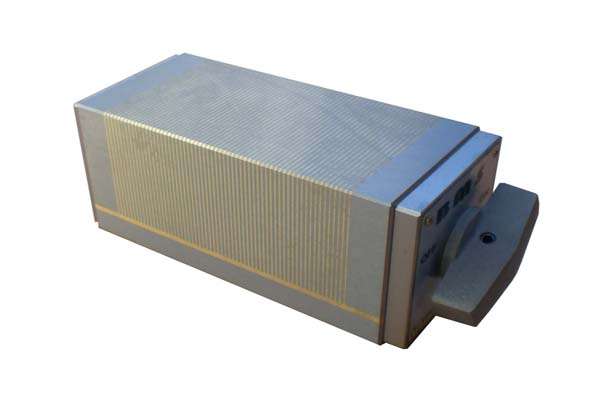

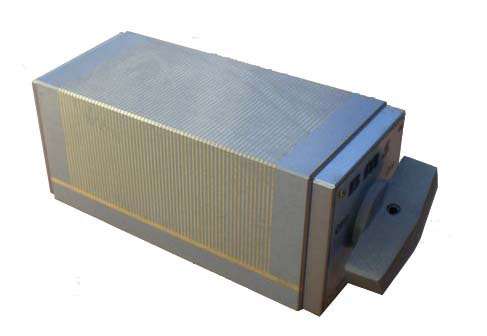

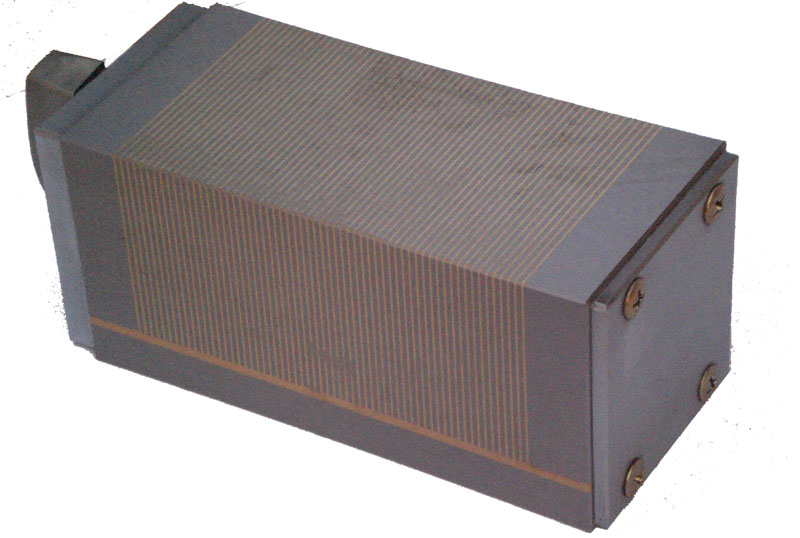

Magnetic Blocks with 3 active faces type BAP3

    • Heavy duty construction
    • Waterproof construction
    • Low magnetic field

. 3 active faces
. With ON/OFF mechanism
. For small and thin workpieces from 0.5 mm thick




  • Use :
    • Grinding
    • EDM
    • metrology
  • Squareness :
    • 0,01 mm
  • Nominal force :
    • N/cm²
  • Pole pitch :
    • 1.5 mm
    • 0.5 mm of brass
    • 1 mm of steel
  • Flatness :
    • 0,02 mm
  • Admissible wear of top plate :
    • 4 mm
  • Magnetic field height :
    • 2 mm
Options :
- Sine table execution
- Stainless steel execution

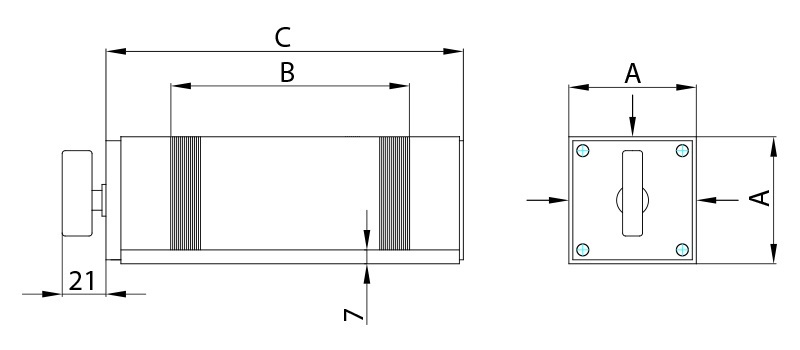

13-12-800px-5032-5317

Qty Product Weight in kg A B C D
13.12.552,85590,512660 daN
13.12.704,07090,512690 daN
indication_tableau_dessus
To request a quote
  • Enter quantities in the table above
  • Fill in the contact form below
