Magnetic Block without actuating mechanism type BM3
print
REF 13.23
  • magnetic block high alloyed workpieces

Magnetic Block without actuating mechanism type BM3

    • Heavy duty construction
    • Waterproof construction

. 2 or 3 active faces
. Without actuating mechanism
. Available in Samarium, see "S" reference number, holding force of 180 N/cm²


  • Use :
    • Grinding
    • EDM
  • Parallelism :
    • 0.05 mm
  • Pole pitch :
    • 4 mm
  • Admissible wear of top plate :
    • mm

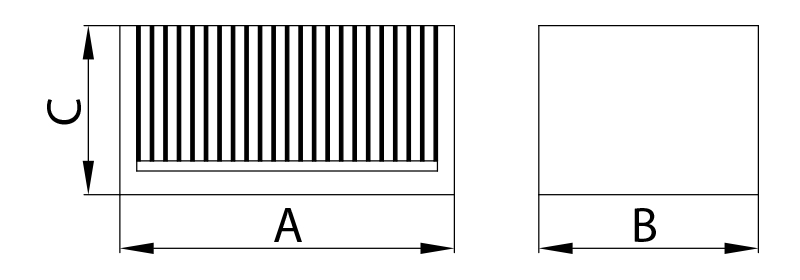

13-23-800px-5035

D = Nb workholding faces
Qty Product Weight in kg A B C D E
13.23.13,2100100501-100x100 + 2-100x5080 daN
13.23.1S3,2100100501-100x100 + 2-100x50180 daN
13.23.21,610050502-100x50 + 1-100x5080 daN
13.23.2S1,610050502-100x50 + 1-100x50180 daN
13.23.30,410025252-100x2580 daN
13.23.3S0,410025252-100x25180 daN
13.23.40,410025252-100x2580 daN
indication_tableau_dessus
To request a quote
  • Enter quantities in the table above
  • Fill in the contact form below
