MAGNETIC BLOCK WITH DUAL FACE TYPE BM2
print
REF 13.21
  • Permanent Block
  • Magnethaftblock mit 2 Haftflächen
Permanent BlockMagnethaftblock mit 2 Haftflächen

MAGNETIC BLOCK WITH DUAL FACE TYPE BM2

    • Heavy duty construction
    • Waterproof construction
    • Low magnetic field

. 2 active faces

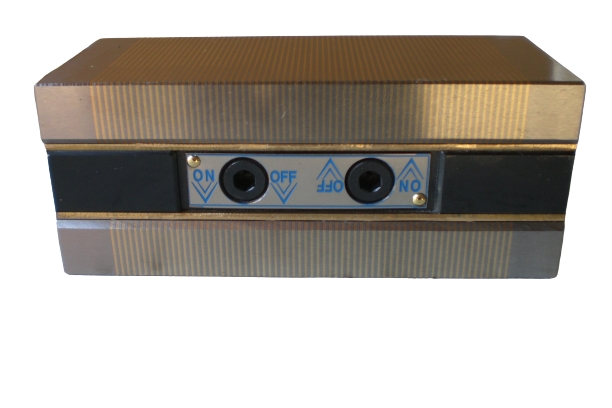

. With 2 separate ON/Off mechanisms

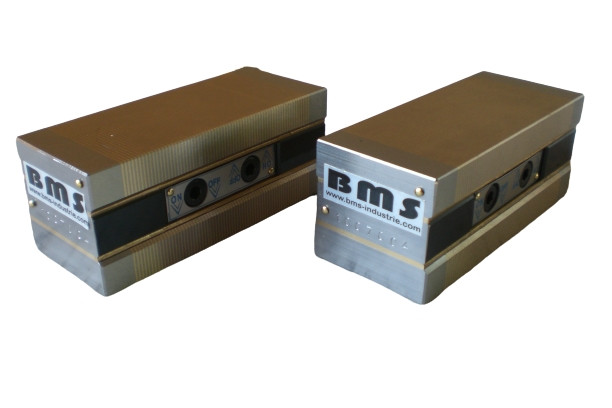

. Delivered in pairs
. On request can be delivered with 1 active face

  • Use :
    • Grinding
    • EDM
    • metrology
  • Parallelism :
    • 0.02 mm
  • Pole pitch :
    • 1.5 mm
    • 0.5 mm of brass
    • 1 mm of steel
  • Admissible wear of top plate :
    • 6 mm
  • Magnetic field height :
    • 4 mm
MAGNETIC BLOCK WITH DUAL FACE TYPE BM2

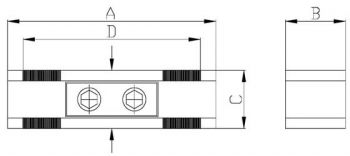

Qty Product Weight in kg A B C D E
13.21.125.22,5x212552509825 daN
13.21.180.23,6x2180525015335 daN
13.21.250.25,0x2250525022550 daN
13.21.125.11,5x212552359825 daN
13.21.180.12,2x2180523515335 daN
13.21.250.13,1x2250523522550daN
