Magnetic Block with 3 active faces type BAP3
print
REF 13.14
  • magnetic block fine pole pitch
  • Magnet-Spannblock 3 Haftflächen
magnetic block fine pole pitchMagnet-Spannblock 3 Haftflächen

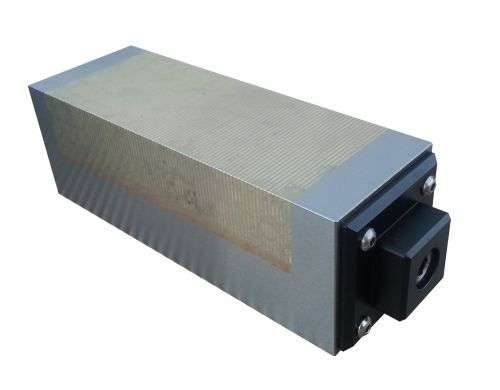

Magnetic Block with 3 active faces type BAP3

    • Heavy duty construction
    • Waterproof construction
    • Low magnetic field

. 3 active faces
. With ON/OFF mechanism
. For small and thin workpieces
Included with purchase:
- 1 Actuating Key



  • Use :
    • Grinding
    • EDM
    • metrology
  • Pole pitch :
    • 2 mm
    • 1 mm of brass
    • 1 mm of steel
  • Admissible wear of top plate :
    • 3 mm
  • Magnetic field height :
    • 4 mm

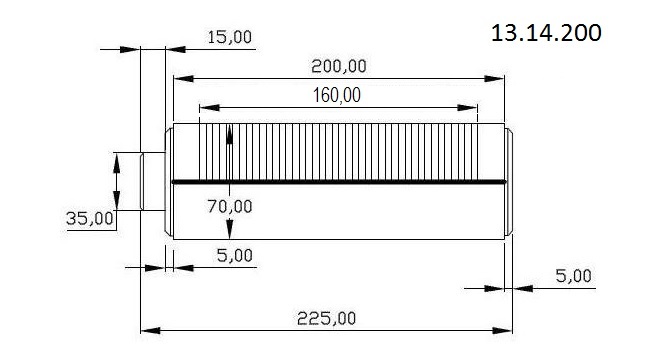

13-14-1999

Qty Product Weight in kg A B C D E F G
13.14.2007,5707020016022535150 N/cm2
indication_tableau_dessus
