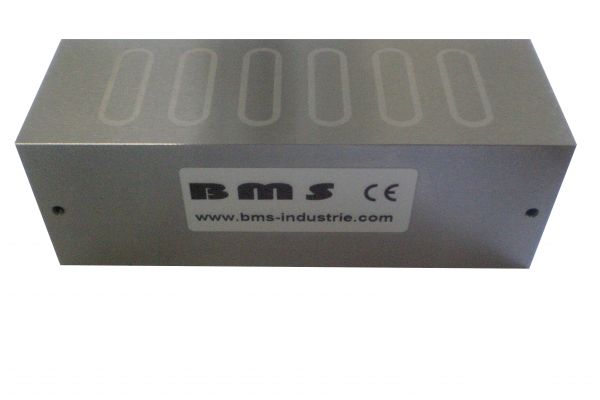

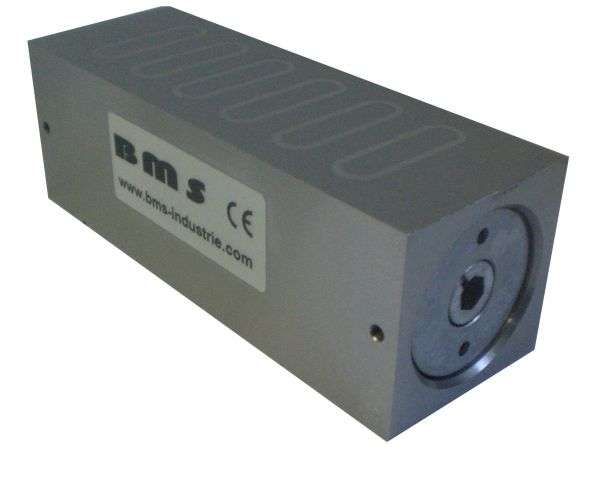

Magnetic Block with 1 active face type BAP1
print
REF 13.13
  • RECTANGULAR MAGNETIC BLOCK
  • MAGNETIC BLOCK
  • RECTANGULAR MAGNETIC BLOCK TYPE BAP1
RECTANGULAR MAGNETIC BLOCKMAGNETIC BLOCKRECTANGULAR MAGNETIC BLOCK TYPE BAP1

Magnetic Block with 1 active face type BAP1

    • Heavy duty construction
    • Waterproof construction

. 1 active face
. With ON/OFF mechanism

  • Use :
    • Grinding
    • EDM
    • metrology
  • Nominal force :
    • 65 N/cm²
  • Pole pitch :
    • 7,5 mm
    • 1,5 mm of brass
    • 6 mm of steel
  • Admissible wear of top plate :
    • 4 mm
  • Magnetic field height :
    • 2 mm

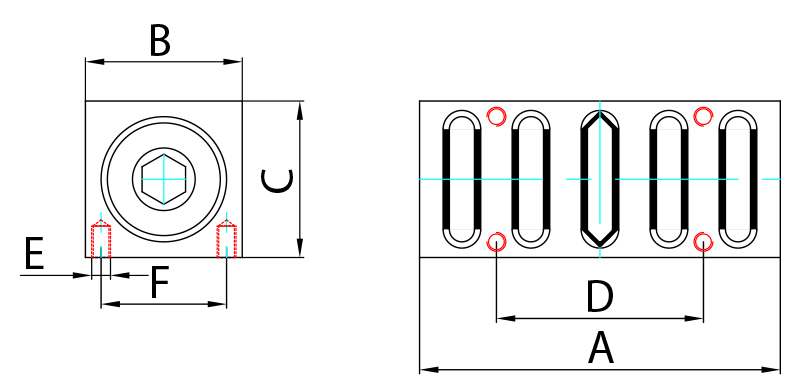

13-13-800px-5033

Qty Product Weight in kg A B C D E F G
13.13.1151,3115404075M53010,5 daN
indication_tableau_dessus
To request a quote
  • Enter quantities in the table above
  • Fill in the contact form below
