Laminated Blocks type LB
REF 14.01
Laminated Blocks type LB
-
- Silver brazed top plate
- Heavy duty construction
-
- Silver brazed top plate
- Heavy duty construction

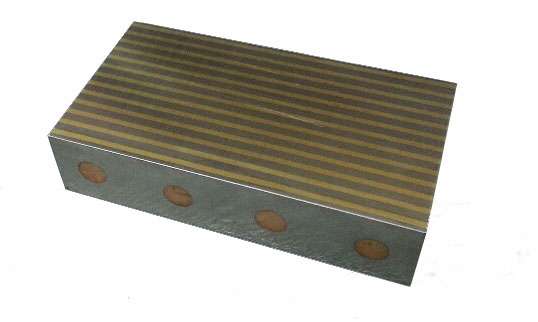

. Made of silver brazed steel and brass laminations
. Laminated blocks transmit the magnetic field of the chuck towards the workpiece. They can be used with any magnetic clamping system that has a parallel pole pitch. They can simply be placed loose on the magnetic chuck surface (respecting laminations direction) or can be mechanically fitted to the chuck.
. Able to withstand harsh applications because no glue or rods have been used to fix the laminations together.
-
Use :
- Grinding
- EDM
- Milling
- metrology
- Drilling
- Machining
- Other sizes available on request
- Other pole pitch execution
- Delivered in pairs
- Other pole pitch execution
- Delivered in pairs

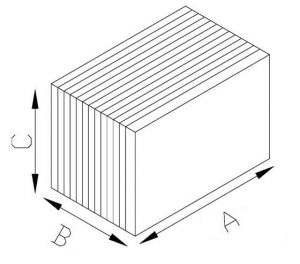

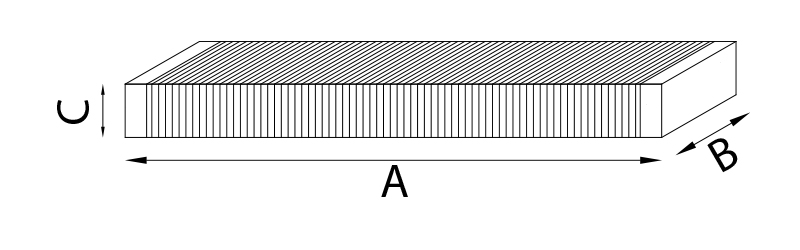

| Qty | Product | Weight in kg | A | B | C | D |
|---|---|---|---|---|---|---|
| 14.01.757525B | 1,2 | 75 | 75 | 25 | 3 + 1 | |
| 14.01.1007525B | 1,5 | 100 | 75 | 25 | 3 + 1 | |
| 14.01.10010025B | 1,9 | 100 | 100 | 25 | 3 + 1 | |
| 14.01.6507525B | 19,6 | 650 | 75 | 25 | 3 + 1 | |
| 14.01.805040B | 2,6 | 80 | 50 | 40 | 3 + 1,5 | |
| 14.01.1005040B | 3,2 | 100 | 50 | 40 | 3 + 1,5 | |
| 14.01.1554540B | 4,6 | 155 | 45 | 40 | 3 + 1,5 | |
