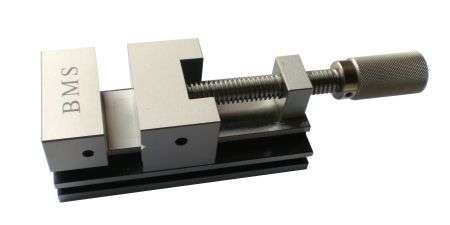

High precision vise type EMPH
print
REF 40.05
  • 40.05 High precision vise type EMPH

High precision vise type EMPH

    • In tool steel
    • Heavy duty construction
    • Safe
    • Effective

. Made of hardened tool steel
. Hardenned and precision ground
. Hardness: HRC60
  • Use :
    • Grinding
    • EDM
    • metrology
  • Squareness :
    • 0.003/100 mm
  • Parallelism :
    • 0.002/100 mm

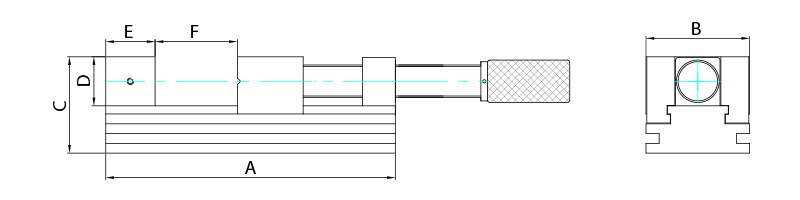

40-05-800px-5085

Qty Product Weight in kg A B C D E F
40.05.601,692605025250-32
40.05.704,3165706230330-80
40.05.908,4212908040400-120
indication_tableau_dessus
To request a quote
  • Enter quantities in the table above
  • Fill in the contact form below
