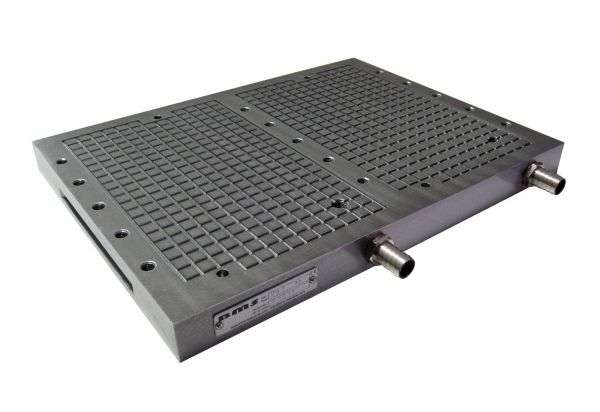

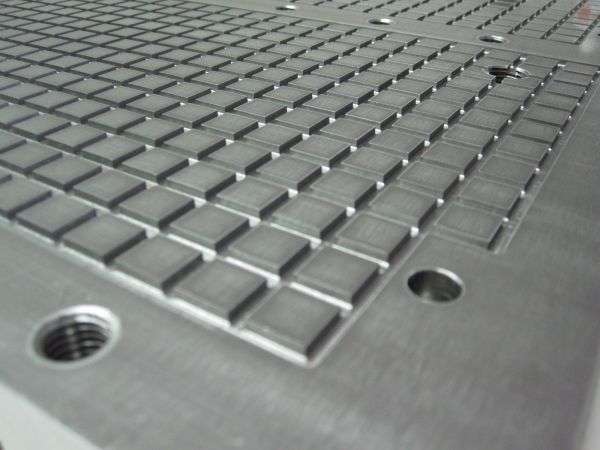

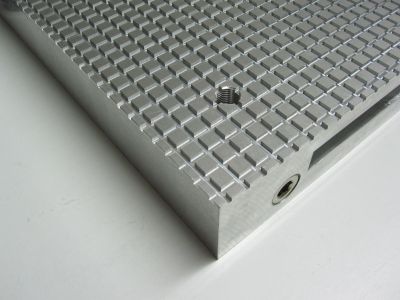

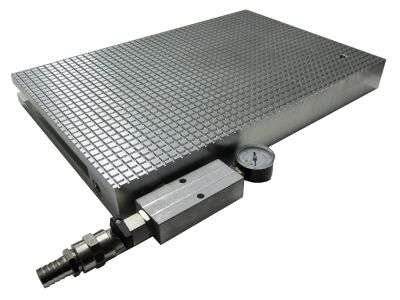

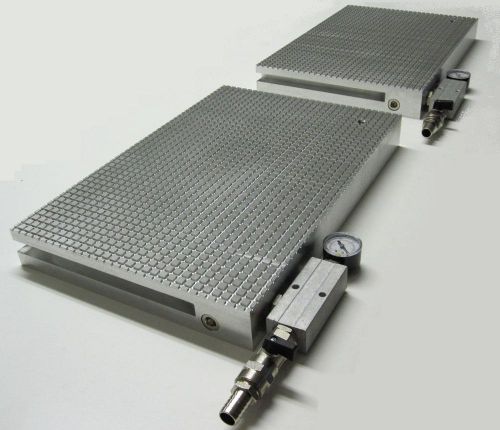

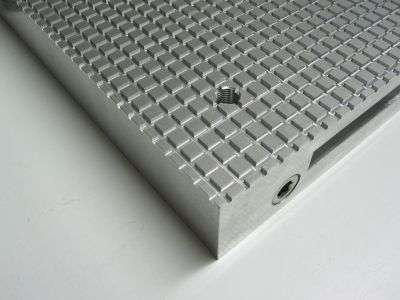

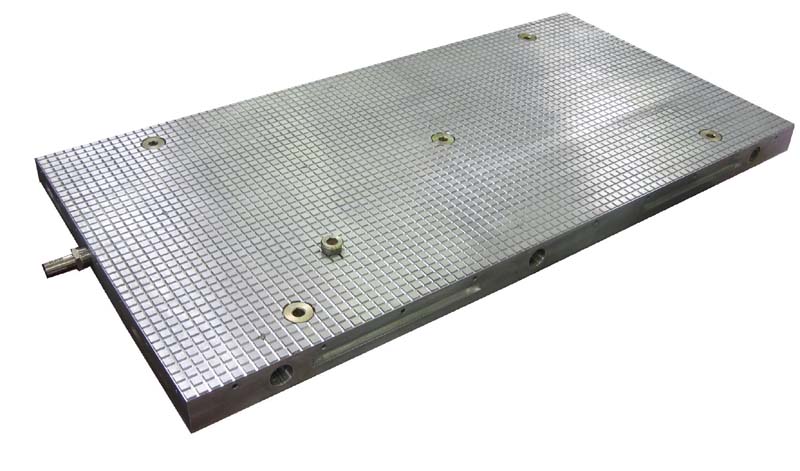

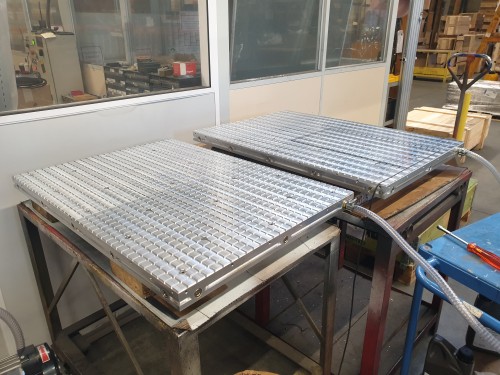

Grid Type Vacuum Chuck type VRS

    • Heavy duty construction

. Grid type vacuum chuck to be used on machine-tool table
. 2 different groove pitches:
VRS12AL: 12.5 mm pitch, execution in aluminium
VRS25AL: 25 mm pitch, execution in aluminium
. The required complementary equipment to be ordered, see articles: 30.11 / 30.12 /30.14 / 30.18 / 30.15
. Corresponding vacuum pump: 30.10 / 30/20
Included with purchase:
- Air hose connector
- End stops



  • Use :
    • Grinding
    • EDM
    • Milling
    • metrology
    • Machining
    • Planning
    • Engraving
    • Polishing
  • Parallelism :
    • 0.02/100 mm
  • Flatness :
    • 0.02/100 mm
Options :
- Another position of air connection

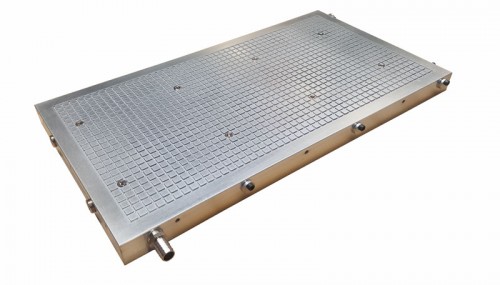

- Multiple independent zones
- Special execution, palletizing
- With steel base plate for use on magnetic chucks

30-01-800px-5077

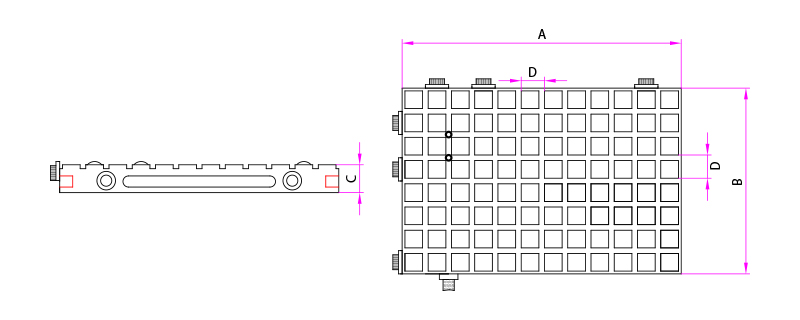

Qty Product Weight in kg A B C D
30.01.2001001,82001003012.5/25
30.01.2501503,52501503012.5/25
30.01.3001504,03001503012.5/25
30.01.3002004,93002003012.5/25
30.01.4002007,14002003012.5/25
30.01.50020010,05002003012.5/25
30.01.60020012,66002003012.5/25
30.01.40030013,04003003012.5/25
30.01.50030016,05003003012.5/25
30.01.60030019,06003003012.5/25
30.01.70030025,07003003812.5/25
30.01.40040019,04004003012.5/25
30.01.60040028,06004003012.5/25
30.01.80040038,08004003812.5/25
30.01.100040048,010004003812.5/25
30.01.50050030,05005003812.5/25
