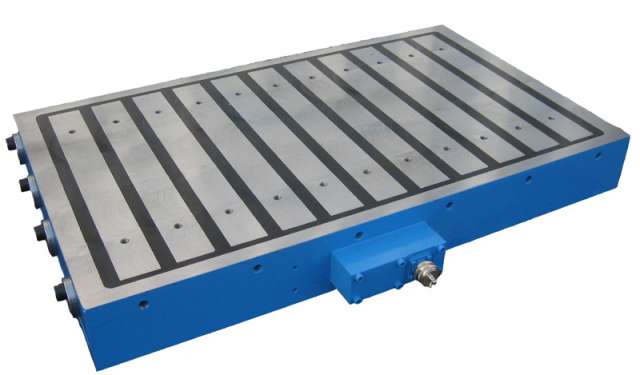

ELECTROPERMANENT MAGNETIC CHUCK TYPE TURBOMILL40B
print
REF 10.32.40
  • ELECTROPERMANENT MAGNETIC CHUCK TYPE TURBOMILL40B
  • 10-32-bd-5291
  • 002-5292
  • 0033-5293
  • afbeelding-010-1-1-5294
  • turbom1-5295
  • vert-mill1-5296
ELECTROPERMANENT MAGNETIC CHUCK TYPE TURBOMILL40B10-32-bd-5291002-52920033-5293afbeelding-010-1-1-5294turbom1-5295vert-mill1-5296

ELECTROPERMANENT MAGNETIC CHUCK TYPE TURBOMILL40B

    • High holding power
    • Heavy duty construction
    • Waterproof construction

. Double magnet system with extremely high holding force
. Top plate made of Steel+Epoxy resin
. Sturdy construction suitable for heavy machinings

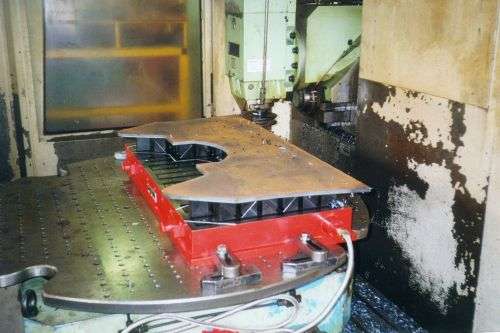

. Ideal for milling of large workpieces and slabs
. Corresponding Control Unit and the Remote Control to be ordered separately:
See 50.02.BFR.400/480 and 50.10.T10
Included with purchase
- 3, 6 or 10 meter long cable (length to be chosen) on the short side
- Long and short side end stops
- Clamps

  • Use :
    • Milling
    • Drilling
    • Contouring
  • Nominal force :
    • 170 N/cm²
  • Pole pitch :
    • 56 mm
  • Admissible wear of top plate :
    • 5 mm
  • Magnetic field height :
    • 15 mm
  • Voltage :
    • 340 VDC
Options :
- Other sizes on request
- Pole extensions to raise the workpieces
- Metal armoured cable with watertight connector
- Through holes to fix the chuck on the machine table
- Cable connection on the long side

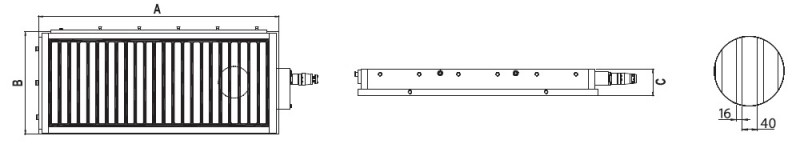

10-32-hb-36295

D = Nb poles
Qty Product Weight in kg A B C D
10.32.40.34630059,0346300805
10.32.40.45830077,0458300807
10.32.40.458400101,0458400807
10.32.40.57030095,0570300809
10.32.40.570400126,0570400809
10.32.40.570500156,0570500809
10.32.40.682300113,06823008011
10.32.40.682400150,06824008011
10.32.40.682500185,06825008011
10.32.40.682600222,06826008011
10.32.40.794300131,07943008013
10.32.40.794400174,07944008013
10.32.40.794500215,07945008013
10.32.40.1018300167,010183008017
10.32.40.1018400222,010184008017
10.32.40.1018500275,010185008017
10.32.40.1018600330,010186008017
10.32.40.1242300203,012423008021
10.32.40.1242400270,012424008021
10.32.40.1242500335,012425008021
10.32.40.1242600402,012426008021
10.32.40.1466400318,014664008025
10.32.40.1466500395,014665008025
10.32.40.1466600474,014666008025
10.32.40.1466800629,014668008025
10.32.40.1690400366,016904008029
10.32.40.1690500455,016905008029
10.32.40.1690800725,016908008029
