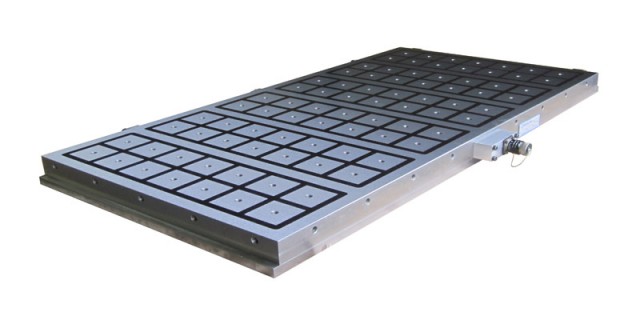

Electropermanent Magnetic Chuck type TURBOMILL 50SQ1

    • Square poles/ p=50x50 mm
    • High holding power
    • Heavy duty construction
    • Waterproof construction

. Electropermanent magnetic system with extremely sturdy monoblock construction
. Space between the poles filled with epoxy resin

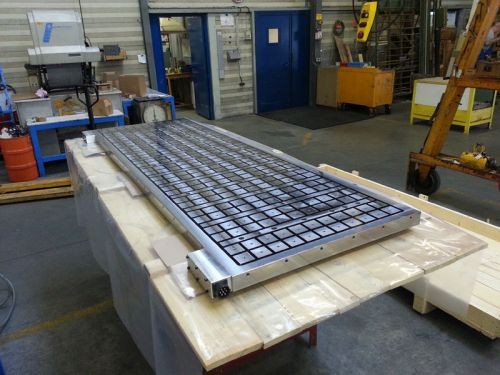

. Ideal for milling of large workpieces and slabs

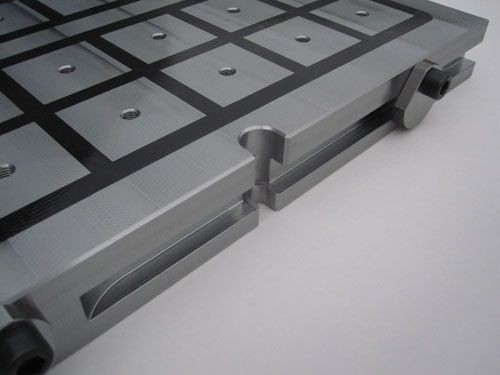

. All square poles equipped with M8 threaded holes

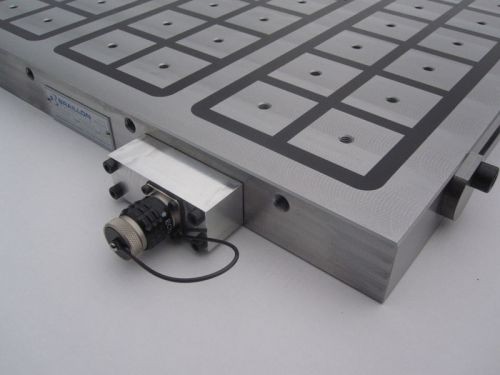

. Power connection through watertight quick connector
. Corresponding Control Unit and the Remote Control to be ordered separately:
See 50.01.BUR.230/400/480 and 50.10.T10
Included with purchase:
- 3, 6 or 10 meter long cable (length to be chosen) on the short side
- Long and short side end stops
- Clamps

  • Use :
    • Milling
    • Drilling
    • Contouring
    • Planning
  • Force by pole :
    • 400 daN
  • Pole pitch :
    • 60 mm
  • Admissible wear of top plate :
    • 4 mm
  • Magnetic field height :
    • 10 mm
  • Voltage :
    • 340 VDC
Options :
- Other sizes on request
- Pole extensions to raise the workpieces
- Through holes to fix the chuck on the machine table
- Cable connection on the long side

10-33-36296

D = Nb poles
Qty Product Weight in kg A B C D
10.33.50.SQ1.32032030,03203204316
10.33.50.SQ1.49029544,04902954324
10.33.50.SQ1.49042063,04904204336
10.33.50.SQ1.49047571,04904754342
10.33.50.SQ1.49057586,04905754348
10.33.50.SQ1.64029558,06402954332
10.33.50.SQ1.64042083,06404204348
10.33.50.SQ1.64047593,06404754356
10.33.50.SQ1.640575113,06405754364
10.33.50.SQ1.79529571,07952954340
10.33.50.SQ1.795420102,07954204360
10.33.50.SQ1.795475116,07954754370
10.33.50.SQ1.795575140,07955754380
10.33.50.SQ1.95029595,09502954348
10.33.50.SQ1.950420122,09504204372
10.33.50.SQ1.950475137,09504754384
10.33.50.SQ1.950575168,09505754396
