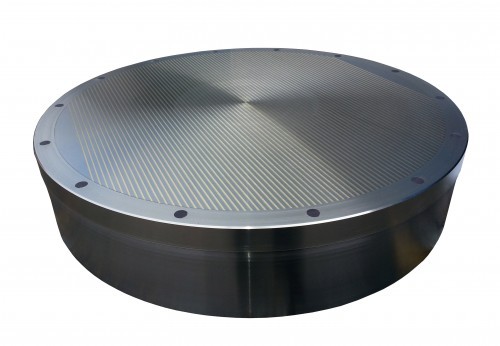

Electropermanent Circular Magnetic Chuck type EPERU

    • High holding power
    • Heavy duty construction

. Electropermanent circular chuck with parallel poles
. For ring-shaped workpieces (including thin rings)
. Suitable for simultaneous machining of several workpieces
. The smallest workpiece thickness: 4 mm
. Corresponding Control Unit and the Remote Control to be ordered separately:
See 50.03.BUP.230/400 and 50.10.T10
Included with purchase:
- Electric connection at the rear of the chuck
- With slip ring assembly either integrated into the chuck or separate (to be fitted to the machine spindle)
  • Use :
    • Grinding
    • Turning
  • Nominal force :
    • 100 N/cm²
  • Pole pitch :
    • 5 mm
    • 1 mm of brass
    • 4 mm of steel
  • Admissible wear of top plate :
    • 8 mm
  • Magnetic field height :
    • 5 mm
  • Voltage :
    • 340 VDC
Options :
- Other sizes and voltages on request
- Through hole in the middle
- Through holes to fit the chuck on the machine table
- Fitting adaptors to:
. Morse cone 3 or 4
. Short taper flanges for:
 A2 DIN 55026
 Bayonet DIN 55027
 Camlock DIN 55029

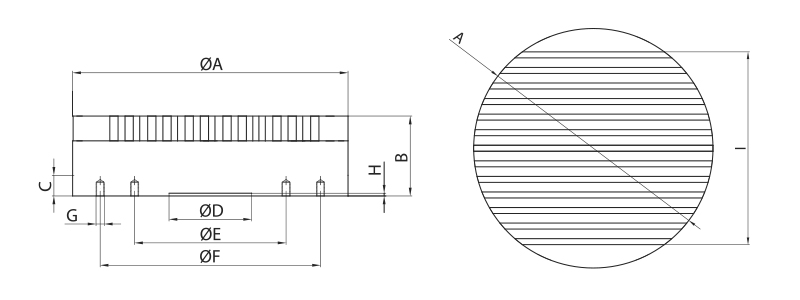

11-17-800px-36339

Qty Product Weight in kg A B C D E F G H I
11.17.5.150.34010,51509014--1203xM104-
11.17.5.200.34020,02009614--1404xM104-
11.17.5.300.34049,530010616--1904xM124-
11.17.5.400.34088,040010616--2506xM125-
11.17.5.500.340150,550011616--3206xM125-
11.17.5.600.340216,060011620--3906xM125-
11.17.5.700.340295,070011620--4506xM125-
11.17.5.800.340385,080011620--5006xM125-
11.17.5.1000.340673,0100013020--6008xM125-
