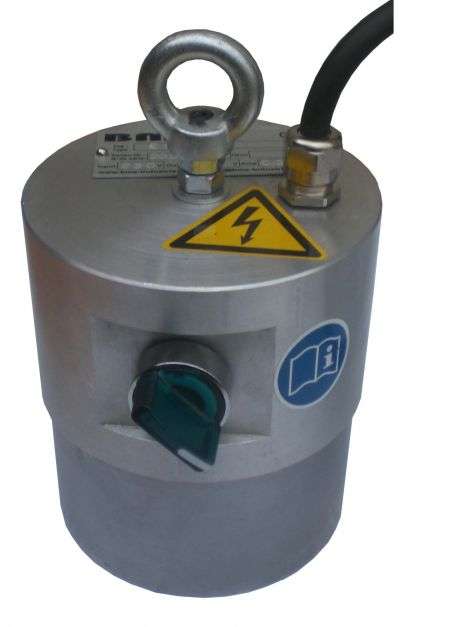

Electromagnetic Lifter type K

    • High holding power
    • Heavy duty construction
    • Waterproof construction
    • Safe
    • Effective
    • According to EN13155 standard

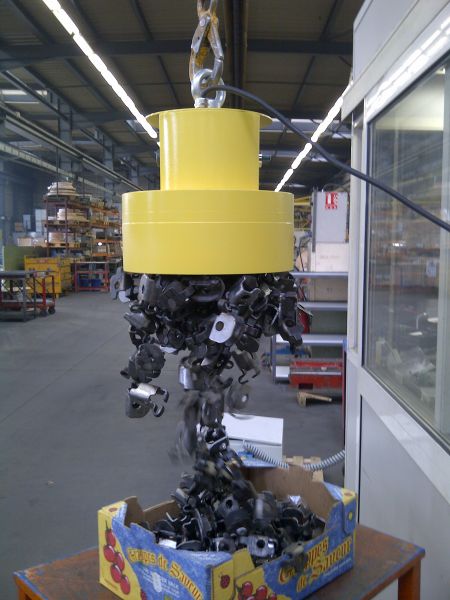

. For lifting of flat loads or bulk material
. Steel housing
. Safety factor: 2:1 (EN131155)
. ON/OFF switch with indicator lamp

. Important! The whole active surface must be covered by lifted element
. Indicated holding forces for ST37 with suitable thickness and without airgap
Included with purchase:
- 3 meters long cable
- Mounting threaded holes
  • Use :
    • Lifting
    • Handling
  • Voltage :
    • 230 VAC
  • Duty cycle :
    • 100 %
Options :
- Other sizes on request
- Other voltages on request
- Tailor made shapes

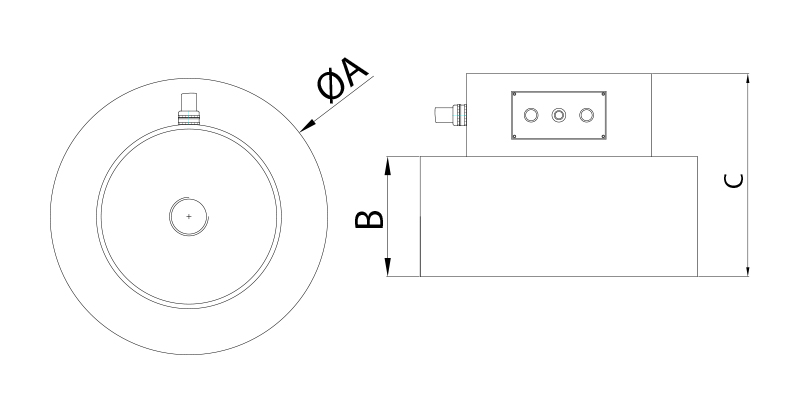

20-04-230ac-800px-5065

D = Force
E = Power
Qty Product Weight in kg A B C D E
20.04.K0.230AC6,110560130380 daN60W
20.04.K1.230AC18160105200520 daN110W
20.04.K2.230AC412451102051250 daN145W
20.04.K3.230AC723001102052450 daN210W
