Electromagnetic Lifter type EMC

    • High holding power
    • Waterproof construction
    • Safe
    • Effective
    • According to EN13155 standard

. For lifting of small bulk material or steel plates
. Very high holding force for flat materials
. Important! The whole active surface must be covered by lifted element
. Indicated holding forces for ST37 with suitable thickness and without airgap
Included with purchase:
- 5 meter long cable

  • Use :
    • Lifting
    • Handling
  • Voltage :
    • 110 VDC
  • Duty cycle :
    • 100 %
Options :
- Other sizes on request
- Other voltages on request

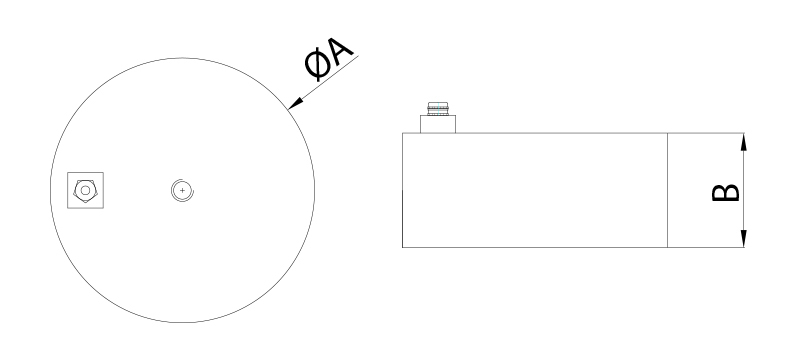

20-04-800px-5064

C = Force
D = Power
Qty Product Weight in kg A B C D
20.04.180.11023,0180100600daN170W
20.04.245.11040,0245110900daN210W
20.04.300.11060,03001101250daN360W
20.04.400.110115,04002001750daN500W
20.04.500.110275,05002002500daN930W
