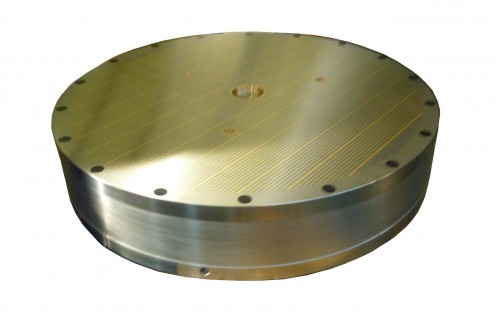

Electromagnetic Circular Chuck type ERP

    • High holding power
    • Heavy duty construction

. Electromagnetic circular chuck with parallel poles
. For ring-shaped workpieces (including thin rings)
. Suitable for simultaneous machining of several workpieces
. The smallest workpiece thickness: 4 mm
. Corresponding Control Unit and the Remote Control to be ordered separately:
See 50.04.BUE.230 / 50.05.T.BUET.230/400 and 50.10.T10
Included with purchase:
- Electric connection at the rear of the chuck
- With slip ring assembly either integrated into the chuck or separate (to be fitted to the machine spindle)
  • Use :
    • Grinding
  • Nominal force :
    • 110 N/cm²
  • Pole pitch :
    • 5 mm
    • 1 mm of brass
    • 4 mm of steel
  • Admissible wear of top plate :
    • 8 mm
  • Magnetic field height :
    • 5 mm
  • Voltage :
    • 110 VDC
Options :
- Other sizes and voltages on request
- Through hole in the middle
- Through holes to fit the chuck on the machine table
- Fitting adaptors to:
. Morse cone 3 or 4
. Short taper flanges for:
 A2 DIN 55026
 Bayonet DIN 55027
 Camlock DIN 55029

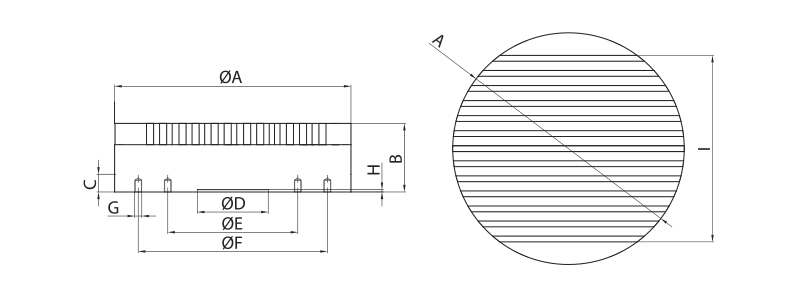

11-12-800px-36335

Qty Product Weight in kg A B C D E F G H I J
11.12.5.150.11010,51509014---3xM104-54W
11.12.5.200.11020,02009614---4xM104-85W
11.12.5.300.11049,530010616---4xM124-144W
11.12.5.400.11088,040010616---6xM125-195W
11.12.5.500.110150,550011616 ---6xM125-282W
11.12.5.600.110216,060011618---6xM125-391W
11.12.5.700.110295,070011618 ---6xM125-512W
11.12.5.800.110385,080011618---6xM165-648W
11.12.5.1000.110673,0100013018---8xM165-990W
indication_tableau_dessus
